Tektronix DSA70000/B Series

Acquisition

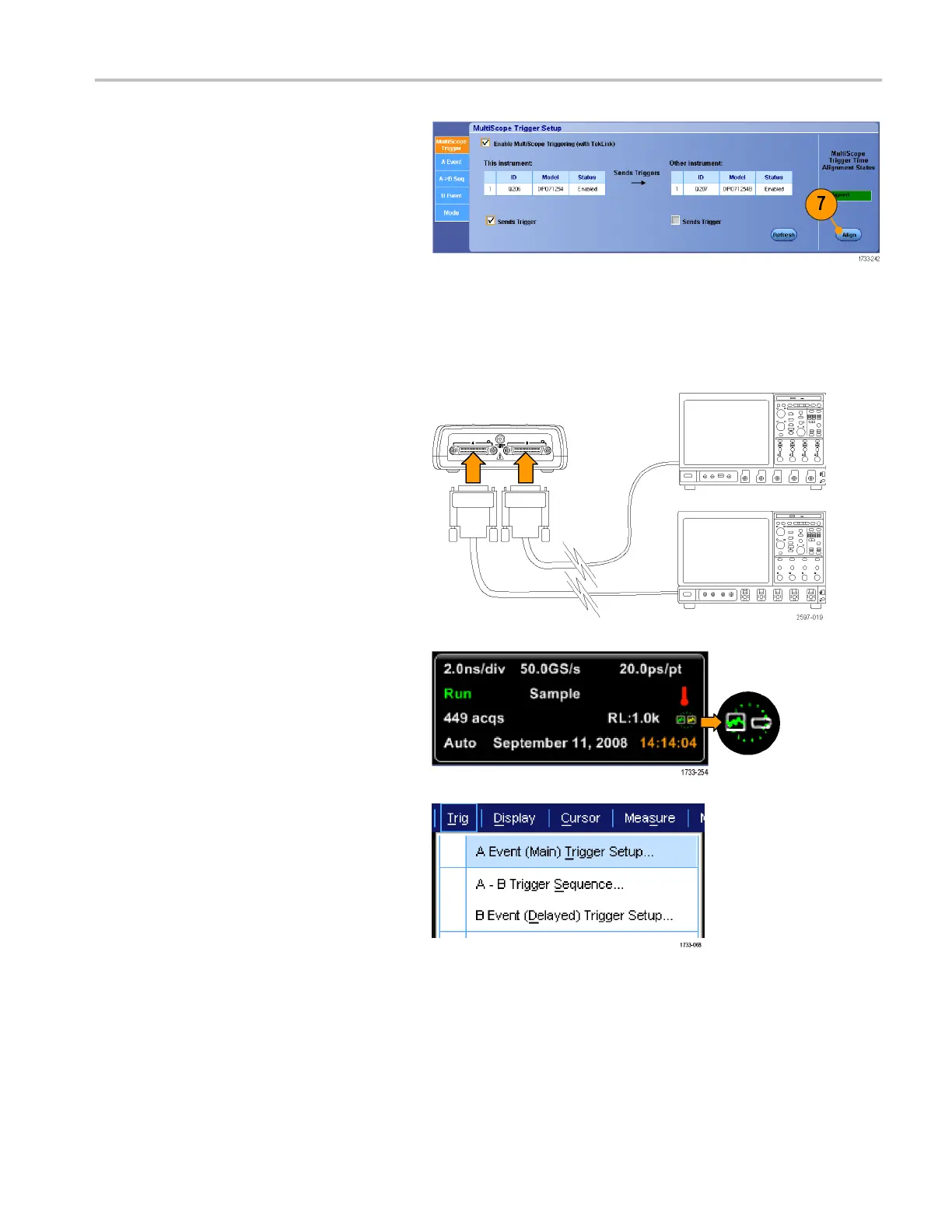

7. To calibrate the MultiScope Trigger,
press the C alibrate button.
Link Mu ltiple Instrument s
Two or more instruments can be connected using a TekLink Hub.
1. Connect two or more instruments using
a TekLink hub and cables.
2. TekLink connection status is displayed in
the horizontal readout.
3. Select Trig > A Event (Main) Trigger
Setu
p....
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 45
