Commands Listed in Alphabetical Order
Group
Horizontal
Syntax
HORizontal:MAIn:TOFPoint?
Related Commands
HORizontal:MAIn:POSition, HORizontal:MAIn:REFPoint, HORizontal:MAIn:
SCAle
Examples
HORIZONTAL:MAIN:TOFPOINT? might return HORI ZONTAL:MAIN:TOFP OINT
20.3000000000E–009
, indicating that the time interval between the trigger
point and the first point in the Main timebase r ecord is 20.3 ns.
HORizontal:MAIn:TOLPoint? (Query Only)
This query only command returns time of last point, which is the time interval
be
tween the trigger point and the last point in a Main timebase record (waveform).

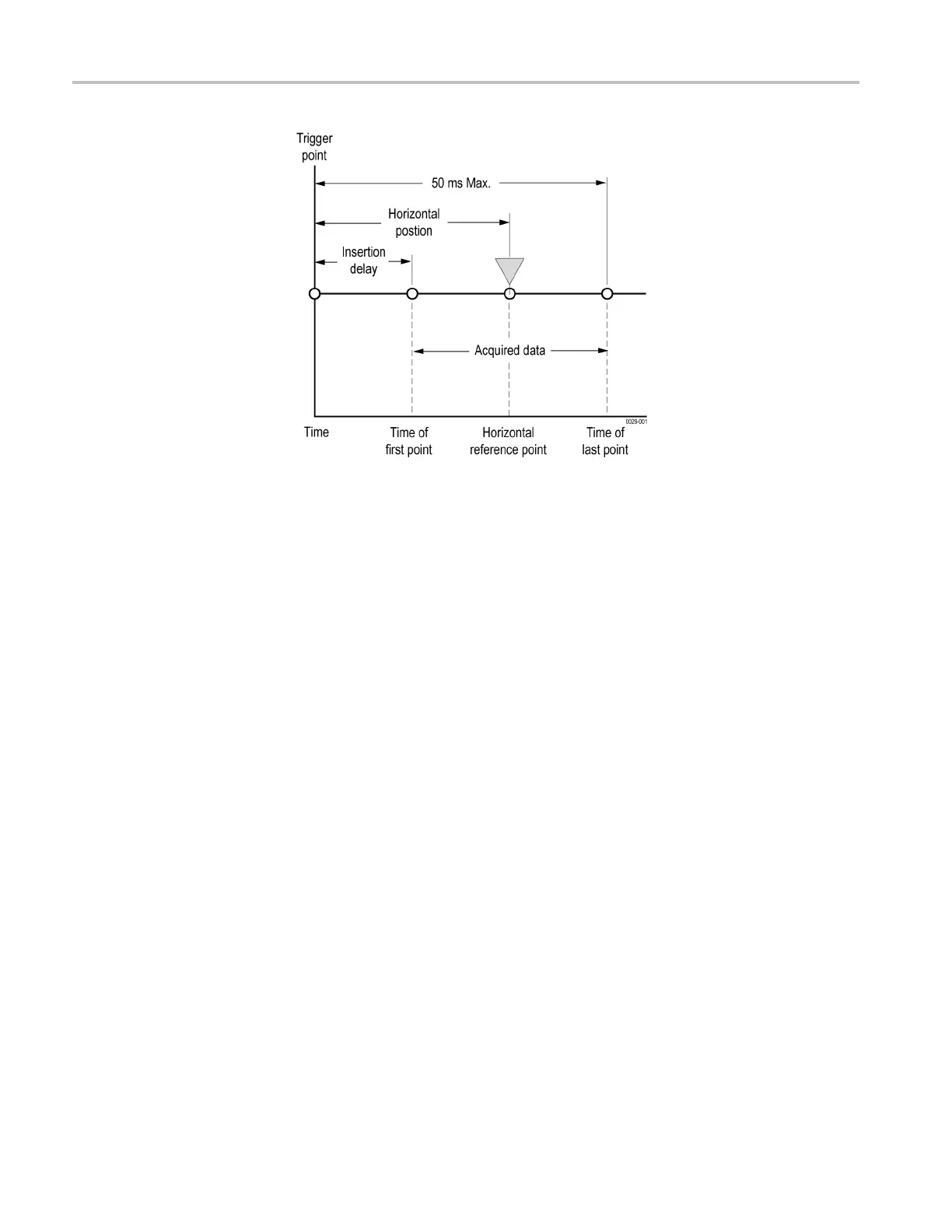

Refer to the illustration below for a diagram of the relationships of time of last
p
oint, time of first point, horizontal position, and horizontal reference point.
2-178 DSA/CSA/TDS8X00/B Series Programmer Manual
