10: Capturing and analyzing waveforms Model DMM7510 7½ Digit Multimeter
User's Manual
10-14 DMM7510-900-01 Rev. C / September 2019

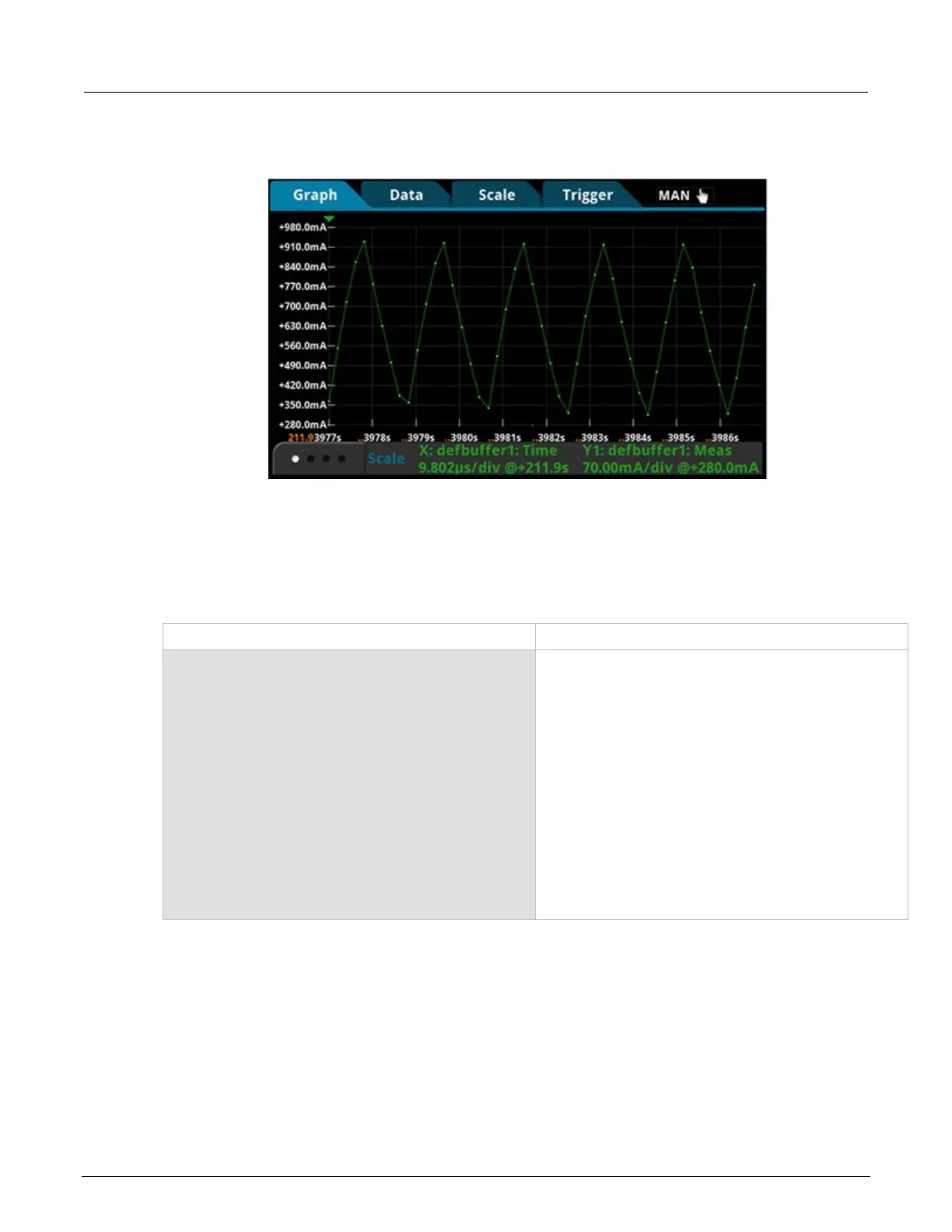

Figure 46: Inductor current linearity results at 8 Ω
Using SCPI commands
You may need to make changes so that this code will run in your programming environment.
Send the following commands:
Command Description
*RST
:SENS:DIG:FUNC "CURR"
:SENS:DIG:VOLT:RANG 1
:SENS:DIG:VOLT:SRAT 500e3
:SENS:DIG:VOLT:APER AUTO
:SENS:DIG:COUN 50
:TRAC:POIN 50
:TRAC:CLE
:TRAC:TRIG:DIG
:TRAC:DATA? 1, 50, "defbuffer1", READ
:TRAC:DATA? 1, 50, "defbuffer1", REL
 Reset the DMM7510.
 Set the instrument to measure digitize current.
 Set range to 1 A.
 Set the sample rate to 500,000.
 Enable automatic aperture.
 Set the sample count to 50.
 Set defbuffer1 to store 50 points.
 Clear defbuffer1.
 Make digitize measurements.
 Retrieve the readings from the buffer.
 Retrieve the relative timestamps from the buffer.
