Tektronix Keithley DMM7510 User Manual

Model DMM7510
7½ Digit Multimeter User's Manual Section 10: Capturing and anal
yzing waveforms
DMM7510-900-01 Rev. C / September 2019 10-13

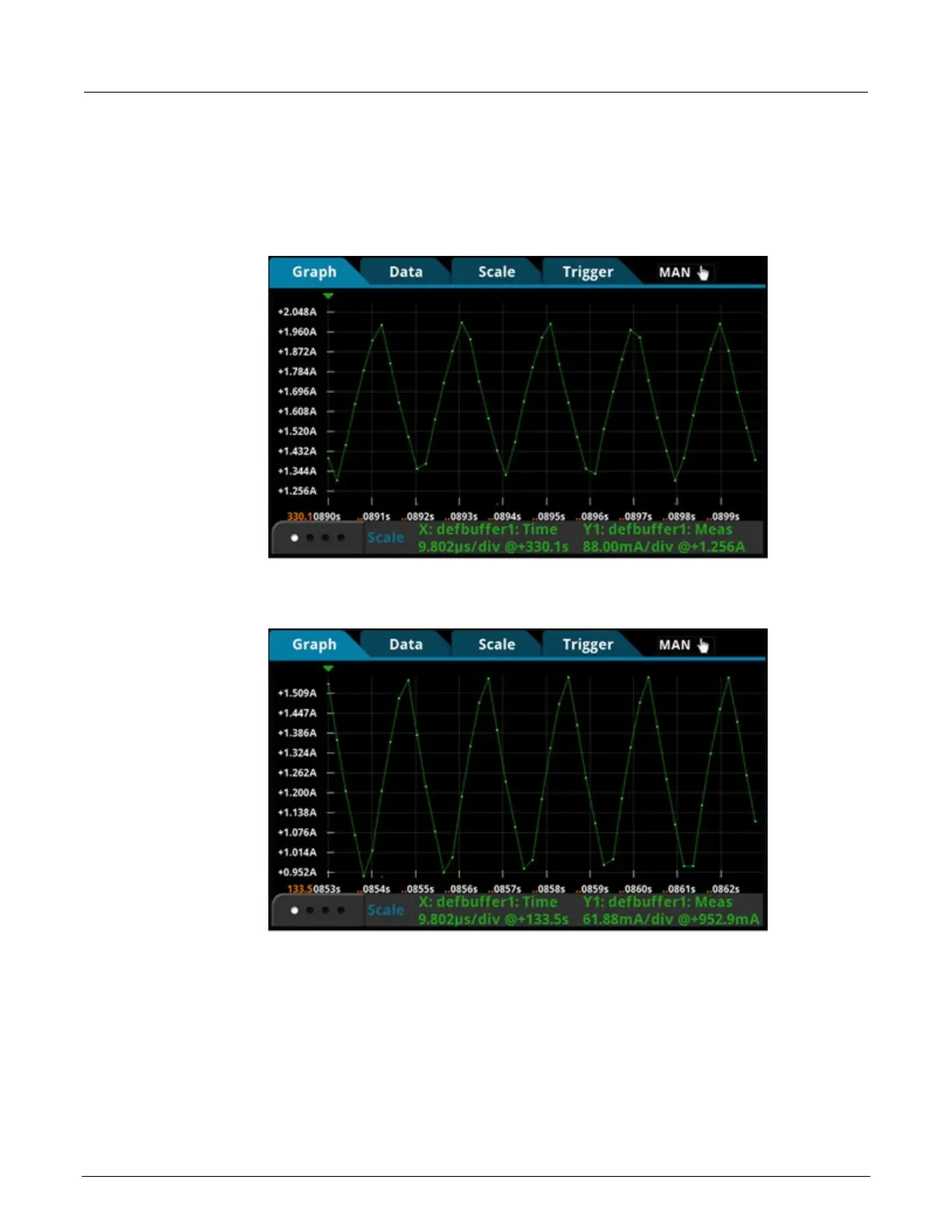

Inductor current linearity results
The front-panel graph shows results that are similar to the following.
Figure 44: Inductor current linearity results at 3 Ω
Figure 45: Inductor current linearity results at 4 Ω
