Tektronix MDO3024 User Manual

Trigger Setup
Starting and Stopping an Acquisition

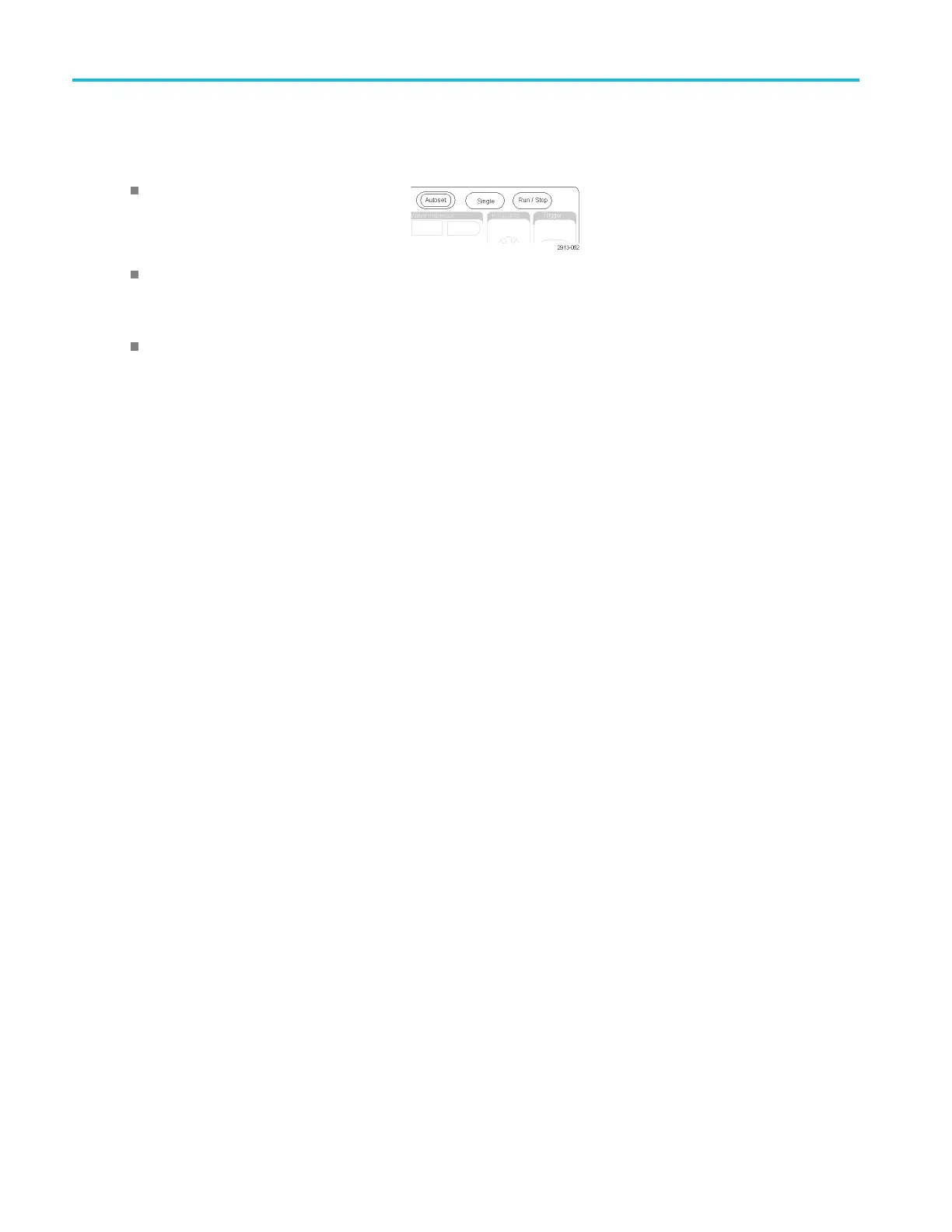

After y ou have defined the acquisition and trigger parameters, start the acquisition with Run/Stop or Single.
Push Run/Stop to start a cquisitions.
The oscilloscope acquires repeatedly
until you push the button again to stop
the acquisition.
Push Single to take a single acquisition.
Single sets the trigger mode to Norm al
for the single acquisition.
If any analog or digital waveforms are
active, then pressing Run/Stop to stop
acquisitions will cause the oscilloscope
to wait for one more trigger event before
stopping. O nce the acquisition occurs,
the Run/Stop button will turn red and the
Single button will become unlit.
If the Trigger Mode is set to Auto and
another trigger event does not occur
within the Auto trigger timeout period
then an acquisition will be made and the
instrument will stop.
If the Trigger mode is set to Normal,
the oscilloscope will continue waiting
for a trigger event to occur as long as
necessary.
102 MDO3000 Series Oscilloscopes User Manual

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
