Tektronix MDO3024 User Manual

Analyze Wavefor
morTraceData

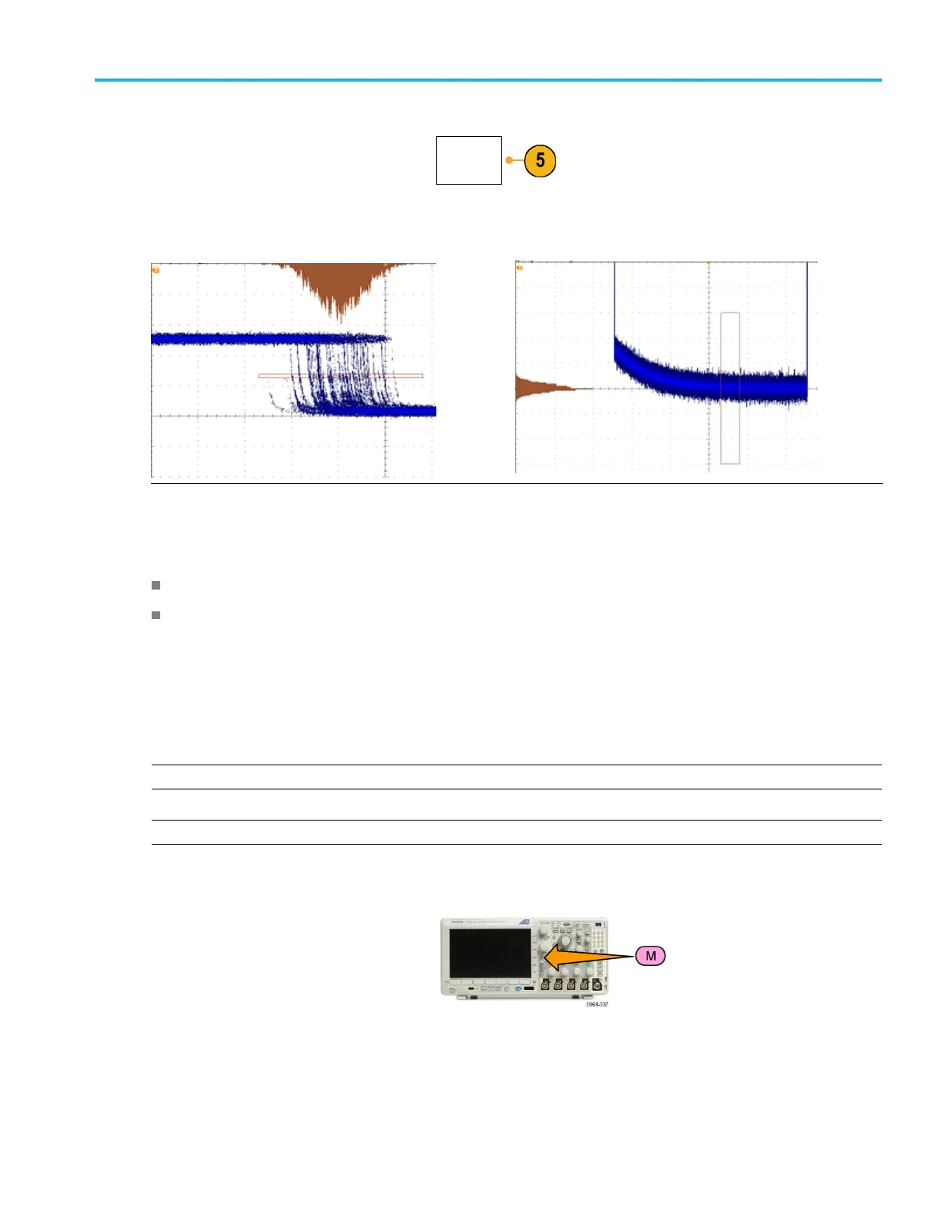

5. Push Reset Statistics on the side menu.
Reset
Statistics
You can view t
he histogram at the top (for horizontal histograms) or the left edge (for vertical histograms) of the graticule.
Quick Tip
s
Use horizontal histograms to measure signal jitter.
Use vertical histograms to measure signal noise.
Using Math Waveforms
Create
math waveforms to support the analysis of your channel and reference w aveforms. By combining and transforming
source waveforms and other data into math waveforms, you can derive the data view that your application requires.
NOTE. Math waveforms are not available for use with serial buses.
NOTE. Math functions are available when the instrument is operating in time-domain mode.
Use the following procedure for executing simple (+, –, x, ÷) math operations on two waveforms:
1. Push
Math.
MDO3000 Series Oscilloscopes User Manual 141

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
