Tektronix MDO3024 User Manual

Get Acquainted w
ith the Instrument

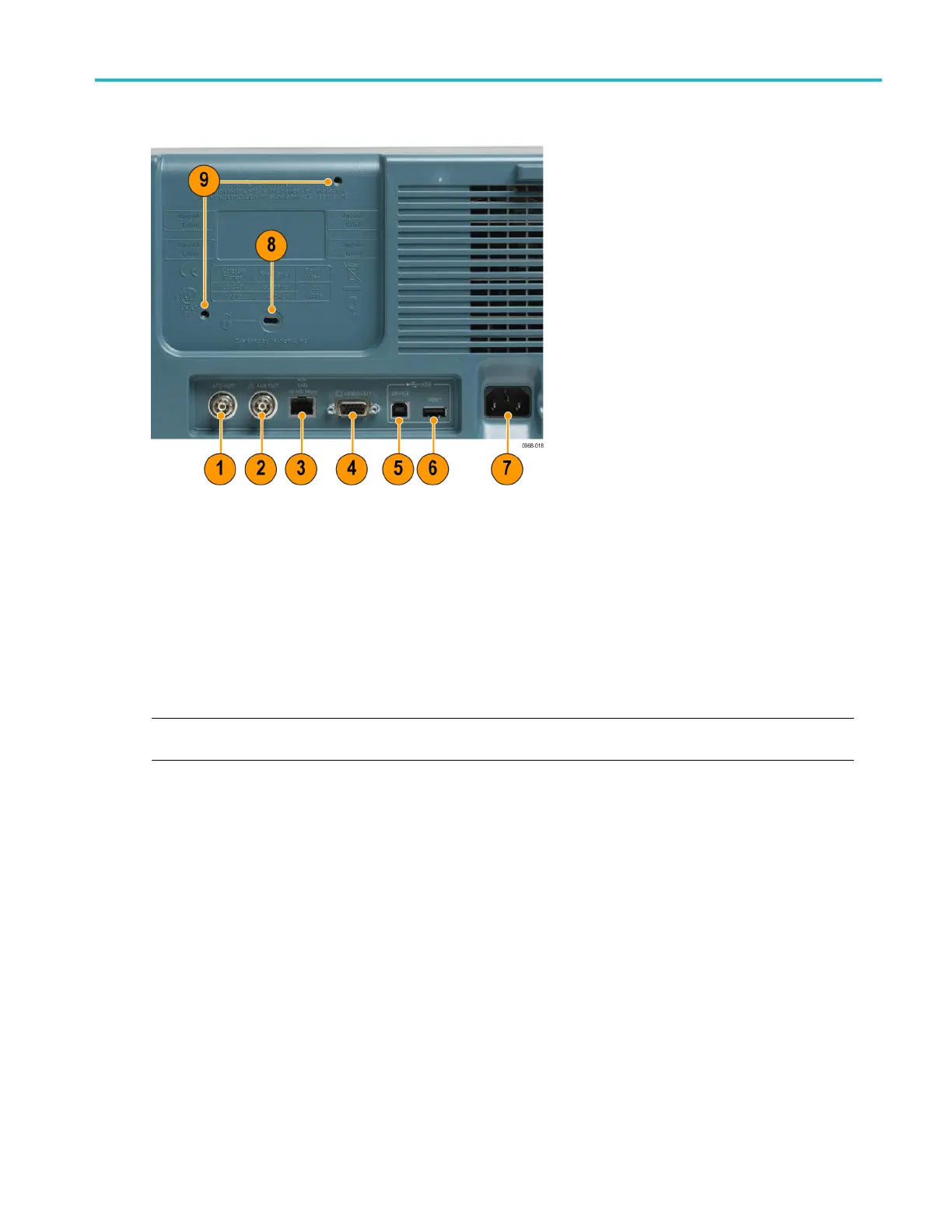

Rear-Panel Connectors
1. AFG OUT. Use the AFG OUT port to transmit signals from the arbitrary function generator.
2. AUX OUT
3. LAN. Use the LAN (Ethernet) port (RJ-45 connector) to connect the oscilloscope to a 10/100 Base-T local area network.
4. Video Out. Use the Video Out port (DB-15 female connector) to show the oscilloscope display on an external monitor
or projector.
5. USB 2.0 Device port. Use the USB 2.0 High Speed Device port to connect a PictBridge compatible printer, or for direct
PC control of the oscilloscope using USBTMC protocol.
NOTE. The cable connected from the USB 2.0 Device port to the host computer must meet the USB2.0 speci fication for high
speed operation when connected to a high speed host controller.
6. USB 2.0 Host port. U se the USB 2.0 High Speed Host port to connect a USB m emory device or USB keyboard.
7. P ower input. Attach to an AC power line with integral safety ground.
8. Lock. Use to secure the oscilloscope.
9. VESA mount. 75 mm.
MDO3000 Series Oscilloscopes User Manual 53

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
