Tektronix MDO3024 User Manual

Display Wavefor
morTraceData

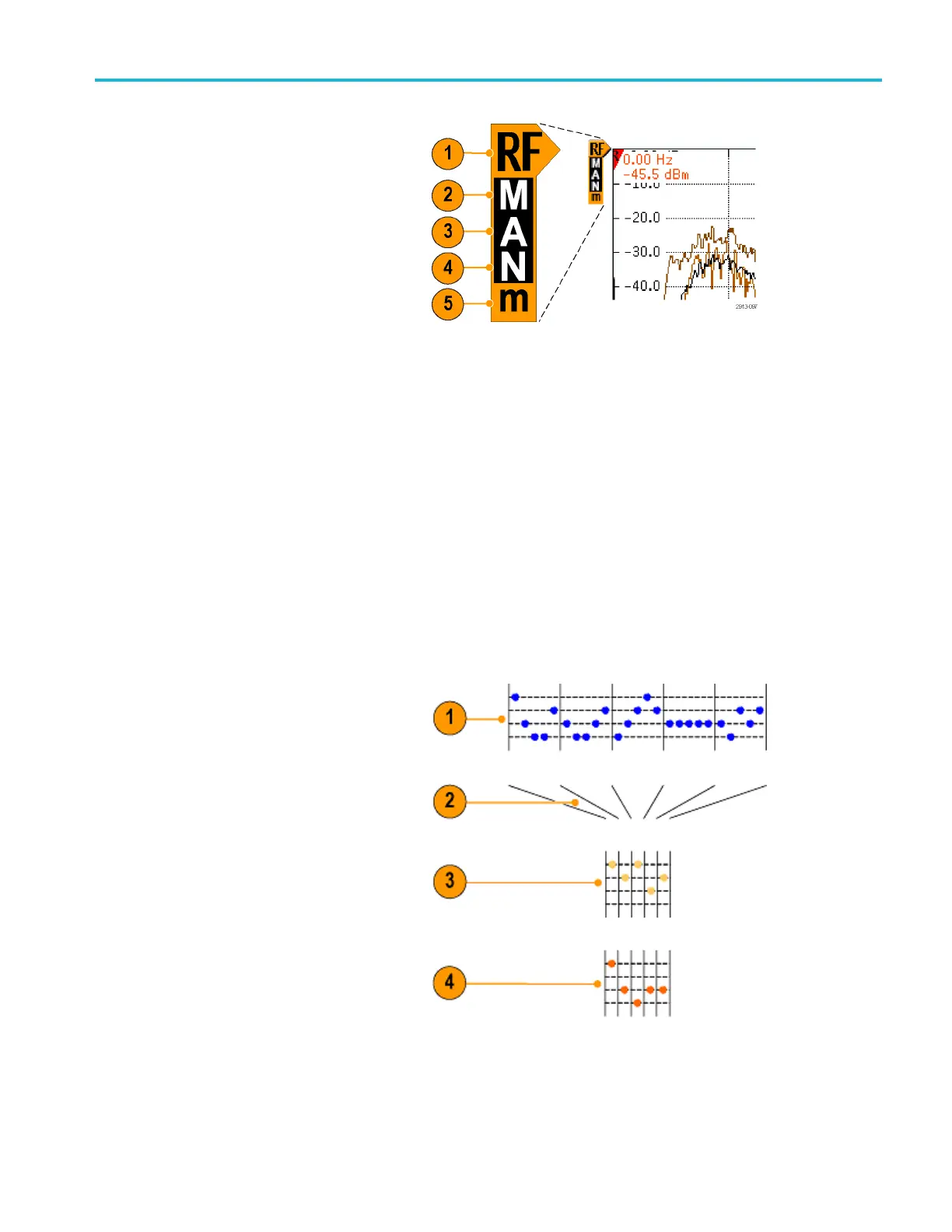

The figure to the right shows the frequency
domain window’s trace indicator.
1. An RF trace indicator is placed at the
Reference Lev
el.
2. A capital M app
ears if the maximum
trace is turned on.
3. A capital A appears if the average trace
is turned on.
4. A capital N appears if the normal trace
is turned on
.
5. The small m a
ppears if the minimum
trace is turned on.
Orange highlighting indicates the currently
selected t
race. In the figure to the right,
the small m, which stands for the minimum
trace, is highlighted. This indicates that the
minimum t
race is currently selec ted.
Detection Types
The MDO3000 calculates FFTs with a 1,000 to ~2,000,000 point output, depending on the acquisition settings. It then
reduces that FFT output into a 750 pixel-wide display. This means that approximately 1 to 2,000 FFT points get compressed
into each pixel column. The MDO3000 gives you several choices as to how this compression is done. The choices are:
+peak, sample, average, and -peak. The figure below illustrates how these detection methods work in a 5:1 compression,
where five points are reduced to each pixel column.
1. FFT points
2. Decimation
3. +Peak
: Uses the highest amplitude point
in each interval.
4. Sample: Uses the first point in each
interval.
MDO3000 Series Oscilloscopes User Manual 119

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
