Tektronix MDO3024 User Manual

Analyze Wavefor
morTraceData
2. Push More as ma
ny times as needed to
select Gating from the resulting pop-up
menu.
Add Mea-
surement
Remove
Measure-
ment
Indicators DVM
DC
Waveform
His-
tograms
More
3. Position the gates using the side menu
options.
Gating
Off
(Full
Record)
Screen
Between
Cursors
Statistics
Statist
ics characterize the stability of measurements. To adjust statistics:

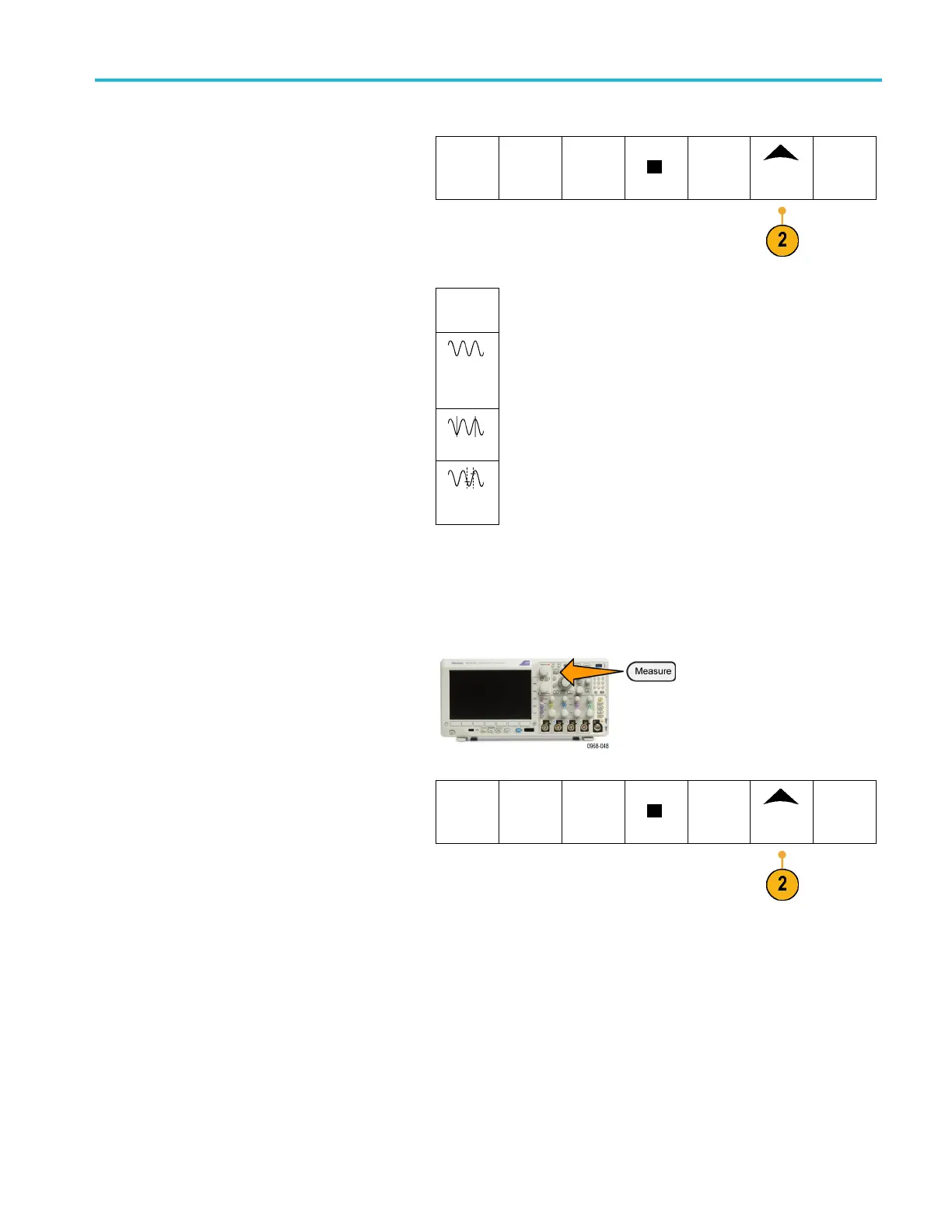

1. Push Measure.
2. Push Mo
re as many times as needed to
select Statistics from the resulting pop-up
menu.
Add Mea
-
surement
Remove
Measure-
ment
Indica
tors
DVM
DC
Waveform
His-
tograms
More
MDO3000 Series Oscilloscopes User Manual 129

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
