Tektronix MDO3024 User Manual

Analyze Wavefor
morTraceData
5. Push OK Snapshot All Measurem ents .
OK
Snapshot
All Mea-
surements
6. View results.
Snapshot on 1
Period
+Width
Burst W
Rise
+Duty
+Over
High
Max
Ampl
Mean
RMS
Area
+Edges
+Pulses
: 312.2s
: 103.7s
: 936.5s
: 1.452s
: 33.23%
: 7.143%
: 9.200 V
: 10.40 V
: 16.80 V
: -5.396 V
: 7.769 V
:-21.58mVs
:1
:2
Freq
–Width
Fall
±Over
–Duty
–Over
Low
Min
Pk-Pk
CycleMean
CycleRMS
CycleArea
-Edges
-Pulses
: 3.203 kHz
: 208.5s
1.144s
: 14.286%
: 66.77 %
: 7.143 %
: -7.600 V
: -8.800 V
: 19.20 V
: -5.396 V
: 8.206 V
: -654.6Vs
:0
:2
Reference Levels
Reference levels determine how time-related
measur
ements are taken. For example, they are
used in calculating rise and fall times.

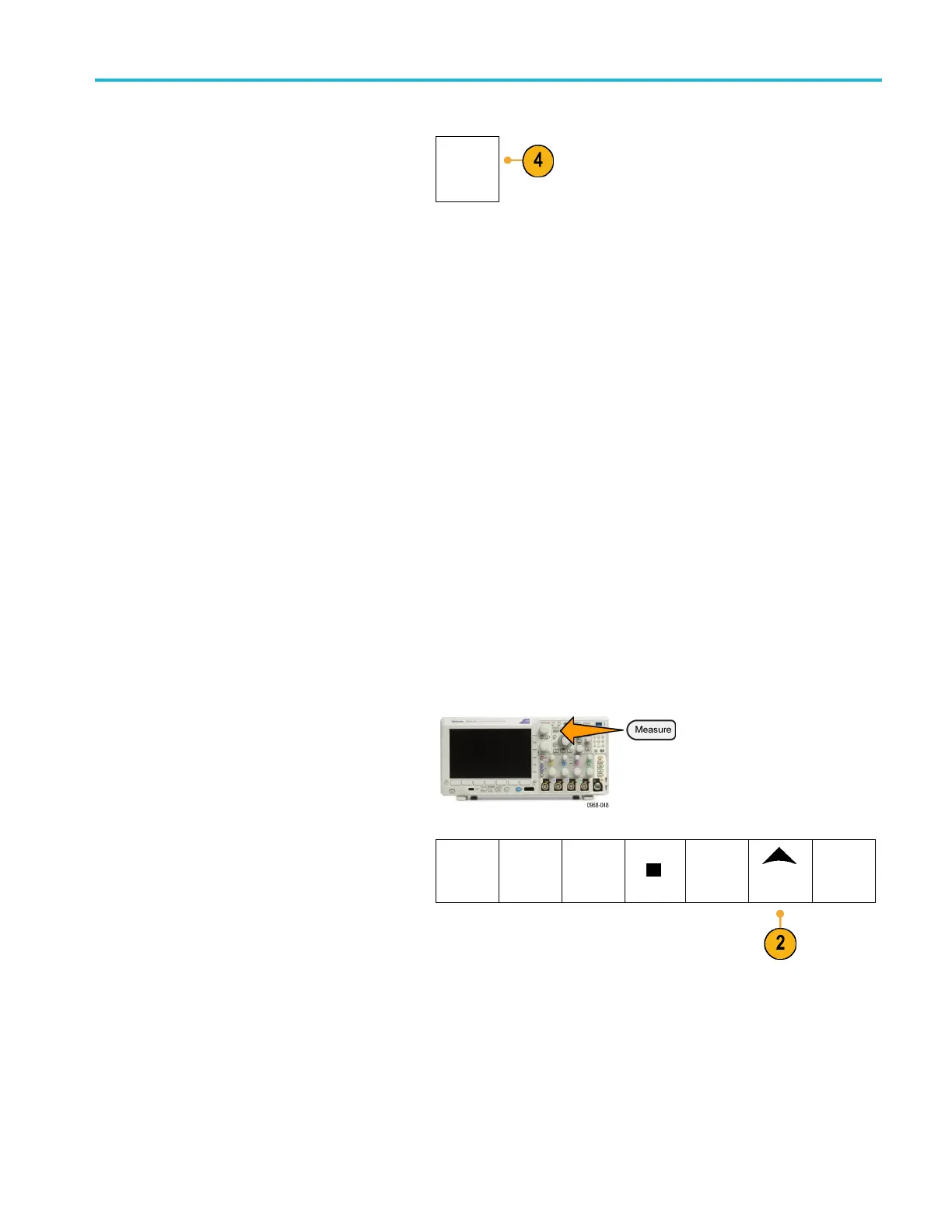

1. Push Measure.
2. Push M
ore as many times as needed to
select Reference Levels from the resulting
pop-up menu.
Add Me
a-
surement
Remov
e
Measure-
ment
Indic
ators
DVM
DC
Wave-
form His-
tograms
More
MDO3000 Series Oscilloscopes User Manual 131

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
