Tektronix MDO3024 User Manual

Analyze Wavefor
morTraceData

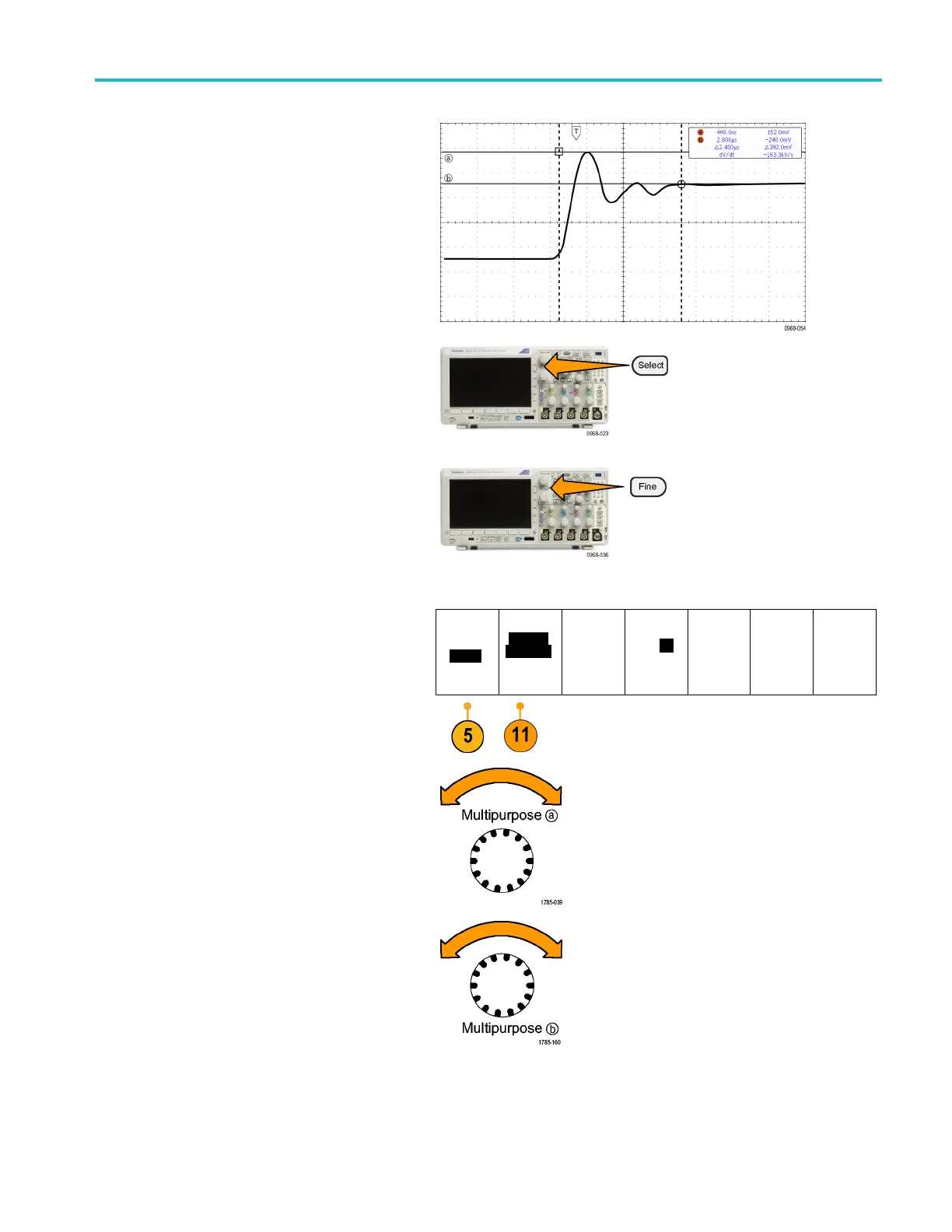

In this example
, two vertical cursors appear
on the selected waveform. As you turn
Multipurpose a, you move one cursor to the
right or left.
As you turn knob Multipurpose
b, you move the other cursor.
2. With cursors on, push Select.
This turns the cursor linking on and off.
If linking
is on, turning M ultipurpose a
moves the two cursors together. Turning
Multipurpose b adjusts the time between
the cursor
s.
3. Push Fine to toggle between a coarse and a
fine adjustment for the Multipurpo se a and
Multipur
pose b knobs.
Pushing Fine also changes the sensitivity of
other k nobs as well.
4. Push and hold Cursors to display the cursor
menu.
5. Push Cursors on the lower menu to set the
cursors to Screen.
In sc re
en mode, two horizontal bars and two
vertical bars span the graticule.
Cursors
Wavefo
rm
Screen
Source
Selec
ted
Waveform
Bars
Horizontal
Vertical
Linked
On
Off
Bring
Cursors
On Screen
Cursor
Units
6. Turn
Multipurpose a and Multipurpose b
to move the pair of horizontal cursors.
MDO3000 Series Oscilloscopes User Manual 135

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
