Analyze Wavefor

morTraceData

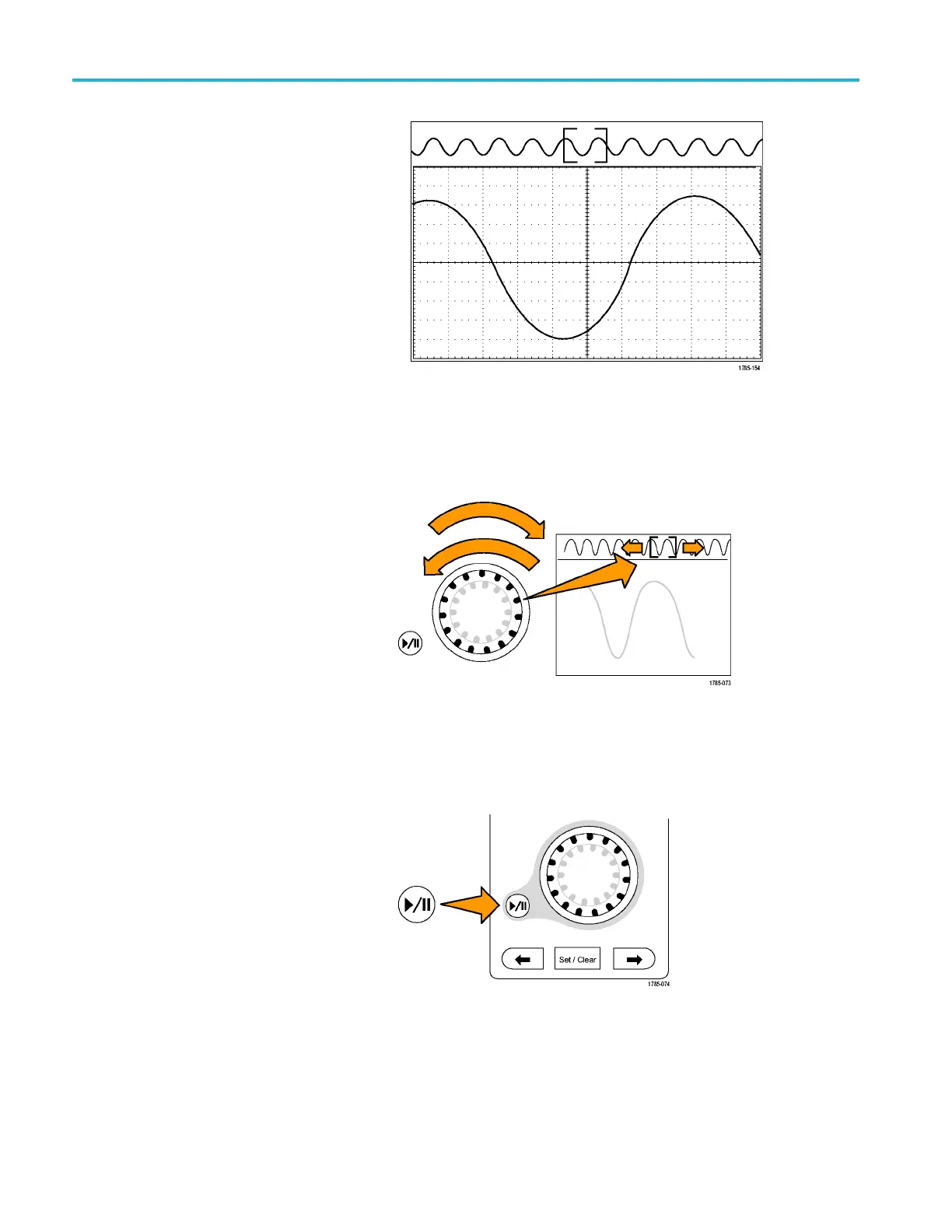

3. E xamine the zoomed view of the

waveform that appears on the larger,

lower portion

of the display. The upper

portion of the display will show the

position and size of the zoomed portion

in the wavefo

rm, within the context of the

overall record.

Panning a Waveform

While the

zoom feature is on, you can use the pan feature to quickly scroll through the waveform. To use pan:

1. Rotate the pan (outer) knob of

the pan-z

oom controls to pan the

waveform.

Turn the knob clockwise to pan

forward

. Turn it counterclockwise to

pan backwards. The further you turn

the knob, the faster the zoom window

pans.

Playing and Pausing a Waveform

Use th

e play-pause feature to automatically pan through a wav eform record. To use it:

1. E nable the play-pause m ode by

pushing the play-pause button.

2. A djust the play speed by turning the

pan (

outer) knob further. The further

you turn it, the faster it goes.

150 MDO3000 Series Oscilloscopes User Manual
