Tektronix MDO3024 User Manual

Get Acquainted w
ith the Instrument
4. Toremoveaside
menu, push the lower
button again or push Menu Off.
5. Certain menu choices require you to
set a numeric value to complete the
setup. You ca
n use the upper and lower
multipurpose knobs a and b to adjust
values. You can also set many numerical
values with
the 10-digit keypad on the
front panel.
6. Push Fine to turn off or on the ability to
make smaller adjustments.

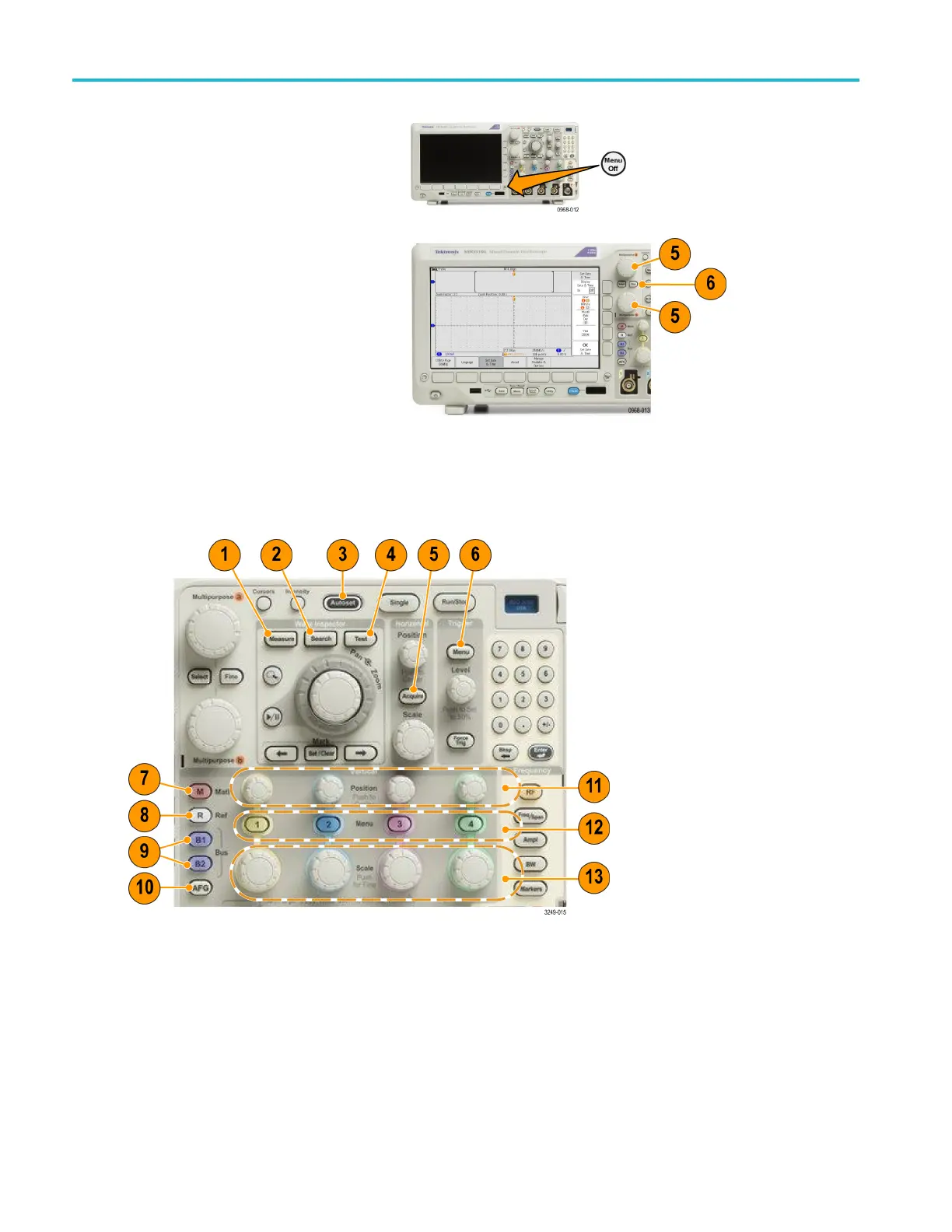

Using the Menu Buttons
Use the me
nu buttons to perform many functions in the oscilloscope.
1. Measure. Push to perform automated measurements on w aveforms and to access the digital voltmeter (DVM) and
waveform histogram functions.
2. Search. Push to perform an automated
search through an acquisition for user-defined events/criteria.
3. Autoset. Push to perform an automatic se tup of oscilloscope settings.
4. Test. Push to activate advanced or application-specific testing features.
38 MDO3000 Series Oscilloscopes User Manual

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
