Tektronix MDO3024 User Manual

Acquire the Sign
al

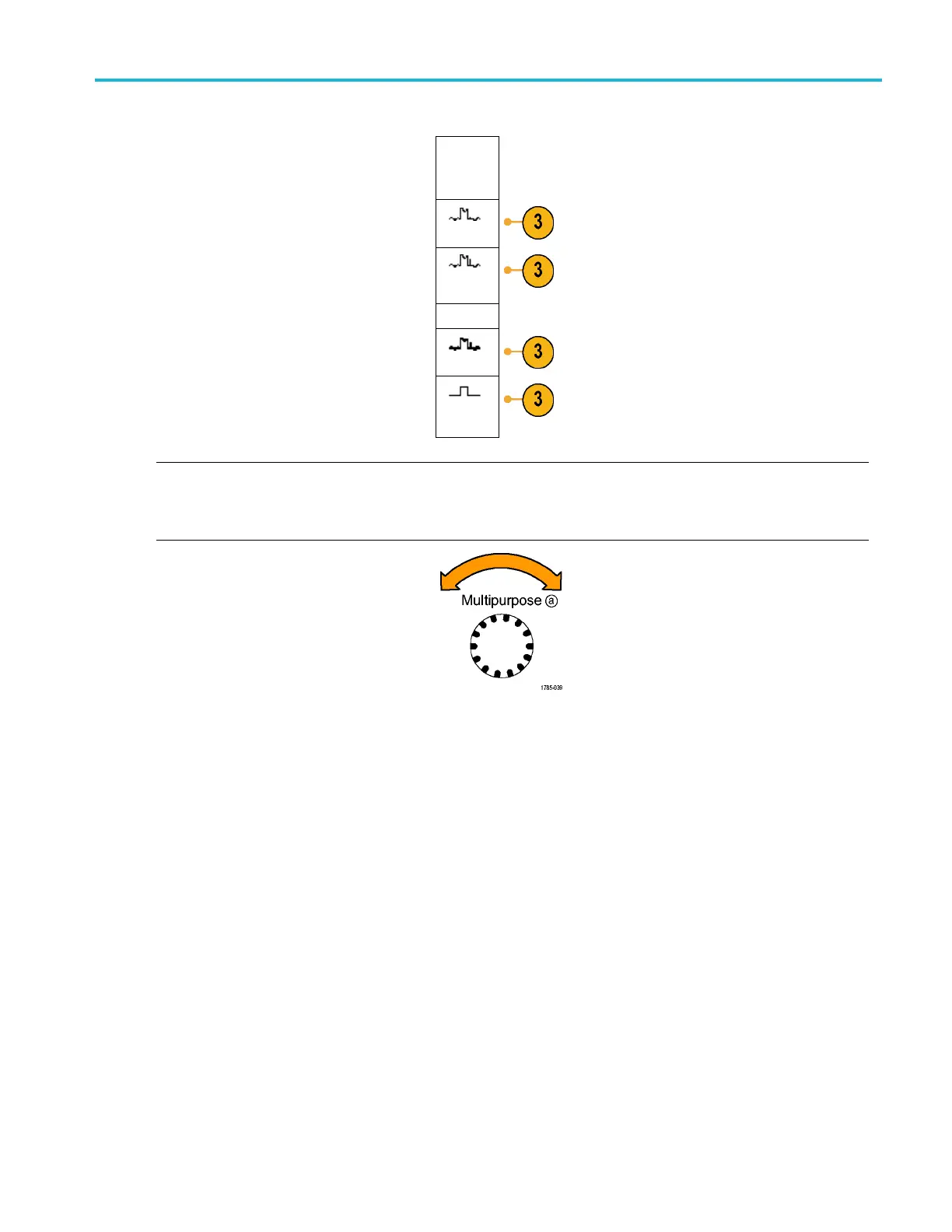

3. Then choose the acquisition mode from the
side menu. You can chose from: Sample,
Peak Detect, H
i Res, Envelope, or Average.
Acquisition
Mode
Sample
Peak
Detect
Hi Res
Envelope
Average
16
NOTE. Pea
k Detect and Hi Res modes take advantage of sample points that the oscilloscope would have discarded at lower
sweep speeds. Therefore, these modes only w ork when the current sample rate is less than the maximum possible sample
rate. As soon as the oscilloscope starts to acquire at the max imum sample rate, then the Peak Detect, H i Res and Sample
modes all
look the same. You can control the sample rate by setting the Horizontal scale and the Record Length.
4. If you chose Average,turnMu ltipurpose a
to set th
e number of waveforms to average
over.
5. Push Record Length.
6. Scroll through the available choices.
Choose among 1000, 10 k, 100 k, 1 M, 5 M,
and 10 M points.
MDO3000 Series Oscilloscopes User Manual 63

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
