Digital setups

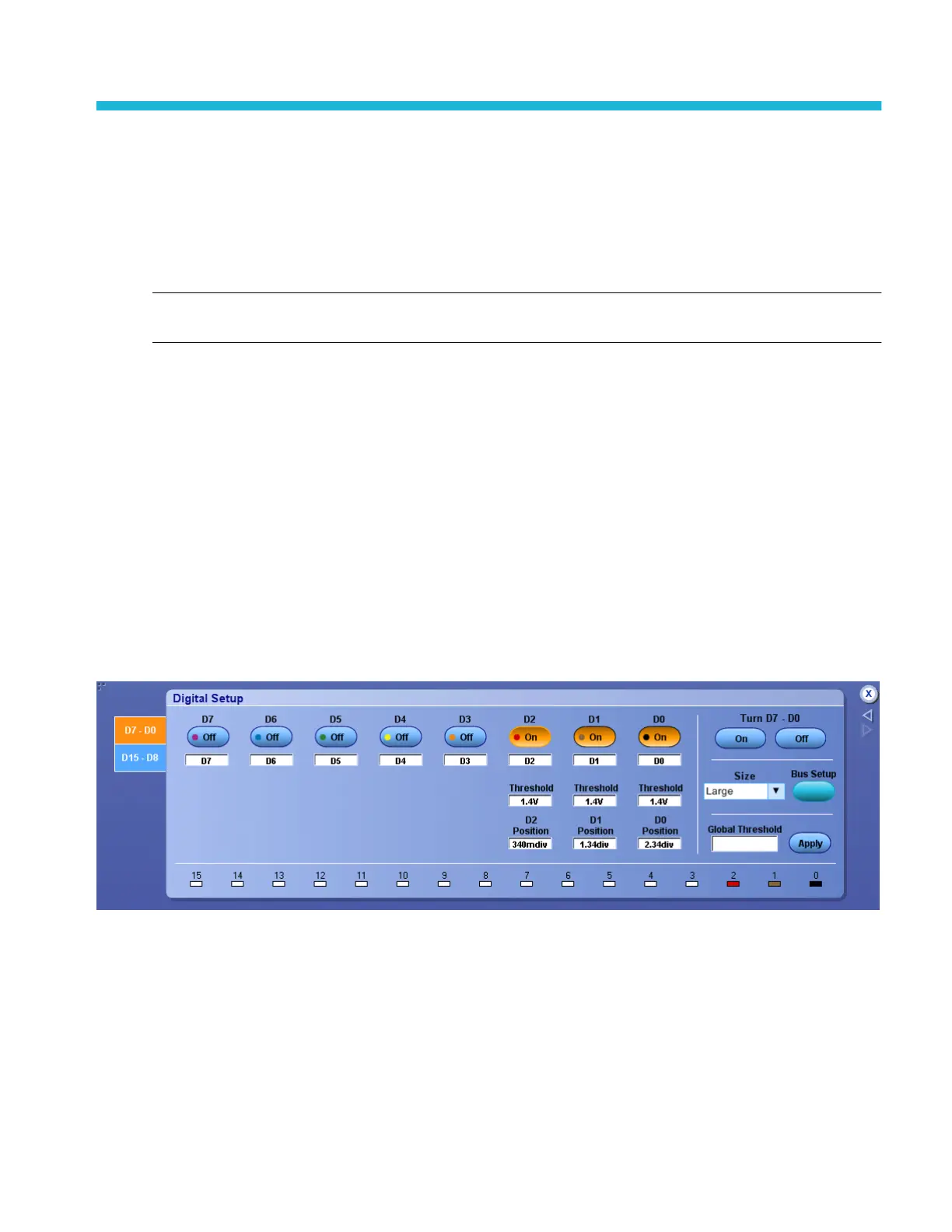

Digital setup control window
From the Digital menu, select Digital Setup.
NOTE. The Digital Setup is available only on MSO5000B and MSO70000C/DX Series instruments and DPO5000B Series
instruments with option MSOE installed, and DPO70000DX instruments with option MSOU installed.
Overview
Use the Digital Setup control windows to set parameters for the D15-D0 digital channels. Use the D15-D8 tab to set up the upper
eight bits and the D7-D0 tab to set up the lower eight bits.
For information on the controls, click the buttons.
■
Threshold & Position
■
Size
■
Global Threshold
■
D15-D0 Tabs
■
Turn D7 - D0
■
Turn D15 - D8
To use
■
Click the digital channels buttons to turn the waveforms on and off.
■
Set the voltage level thresholds for individual channels or set the same threshold level for all channels.
■
Adjust the vertical position of each channel.
■
Set the vertical height of the channel in the display.
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 99
