Bus pattern editor (Bus tab)

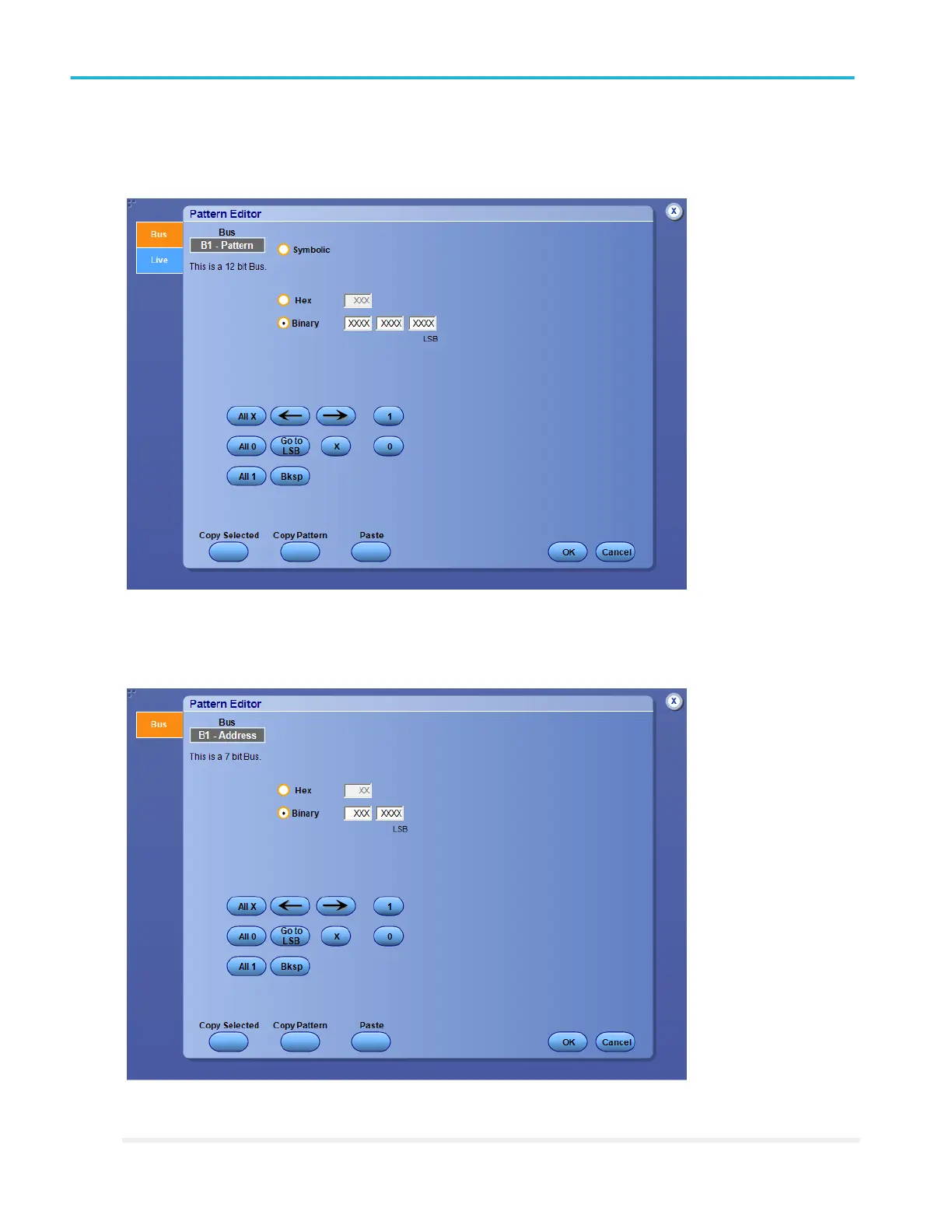

When you select a parallel bus and click the Edit button, use the Pattern Editor controls to set up the bus trigger pattern for the
instrument to use to detect a specific parallel bus value.
When you select a serial bus and click the Edit button, use the Pattern Editor controls to set up the bus trigger pattern for a serial
bus value. For example, the Data (SPI bus), or the Address, Data, or Address and Data (I2C bus) bus values.
What do you want to do next?
