Horizontal digital control window
NOTE. The Horizontal Digital control window is only available when a parallel bus is selected on MSO models and on DPO5000B
models with option MSOE installed, and DPO70000DX instruments with option MSOU installed.
From the Horiz /Acq menu, you can view the Digital Sample Rate and Digital Resolution of logic waveforms. The values track the
sample rate and resolution of the analog system.
To use
■
Use the Sample Rate and Scale entry boxes to set the Digital Sample Rate and the Digital Resolution.

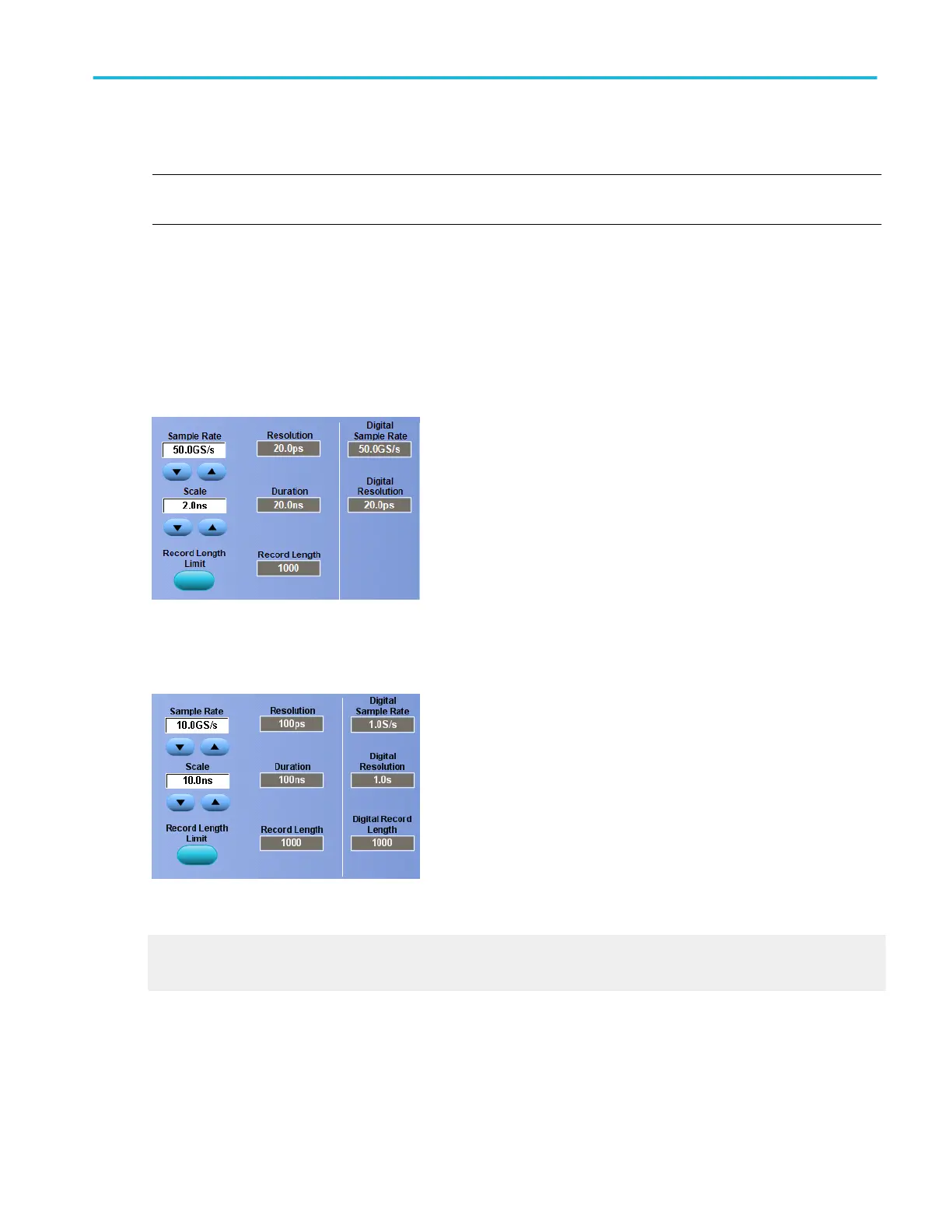

The following screen is captured on MSO70000C/DX Series instruments:
The following screen is captured on MSO/DPO5000B Series instruments:
What do you want to do next?
Learn more about the Horizontal Setup controls.
Learn about the Acquisition Setup controls.
Horizontal and acquisition setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 183
