Link training connections

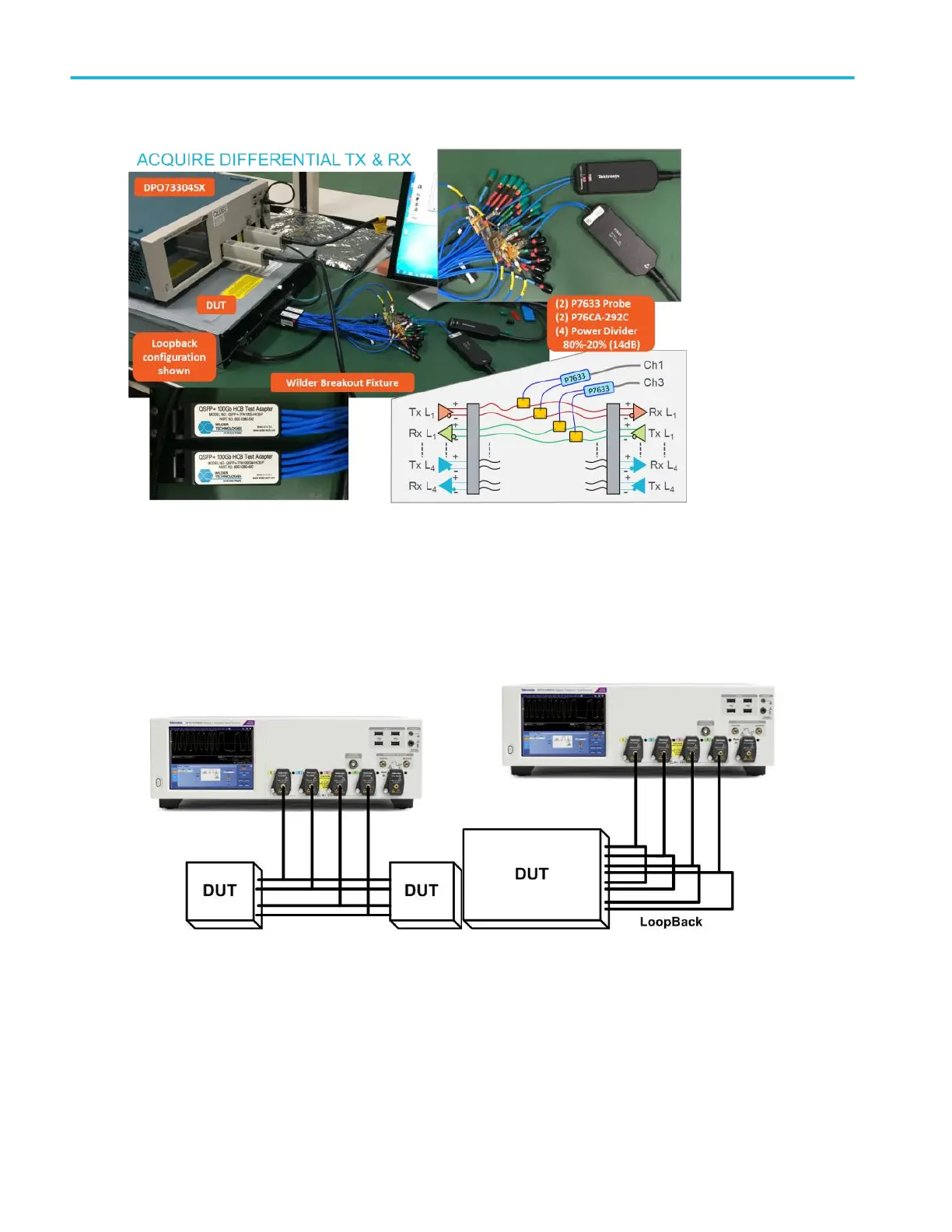

The oscilloscope can monitor two connected DUTs, or a single DUT in a loopback configuration. The signals are accessed using

breakout fixtures, 80/20 power splitters, and P7633 differential probes. Lane1 uses oscilloscope Ch1 and Ch3, while Lane2 uses

oscilloscope Ch2 and Ch4 (to maximize sample rate).

LinkTraining

212 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
