Overview. Use this dialog box to recall a Visual Trigger setup.
To use. Visual trigger setups are recalled from an internal file on your hard drive that you have named.

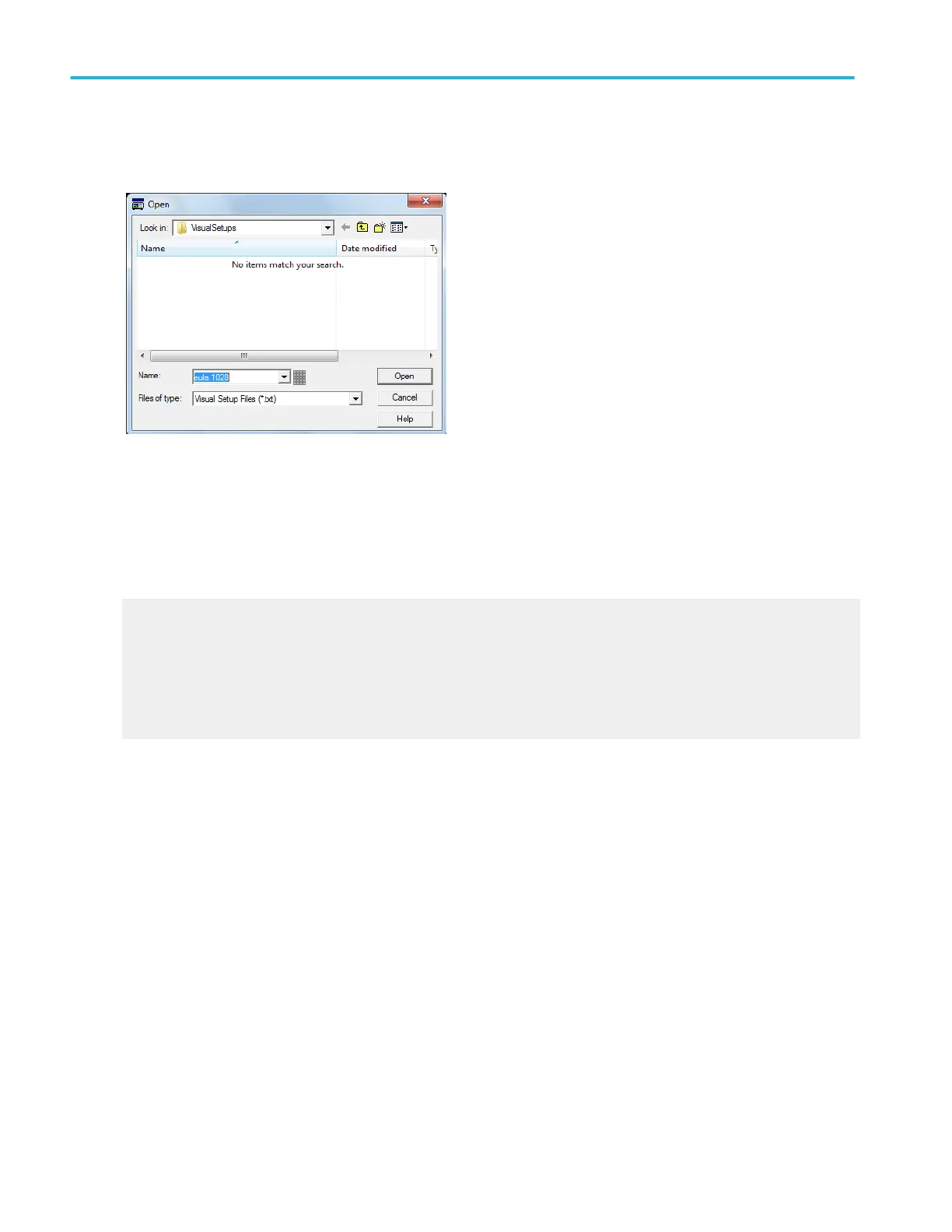

To recall a visual trigger setup from a file, select the location of the setup from the Look in list. Select the setup you want to recall,
and then click Open.
Behavior. The setups are restored from an internal file on your hard drive as soon as you click the Open button.
What do you want to do next?
Learn about visual trigger setup.
Learn about creating a visual trigger area.
Learn about controlling visual triggering.
Learn about saving a visual trigger setup.
Learn about visual trigger qualification.
