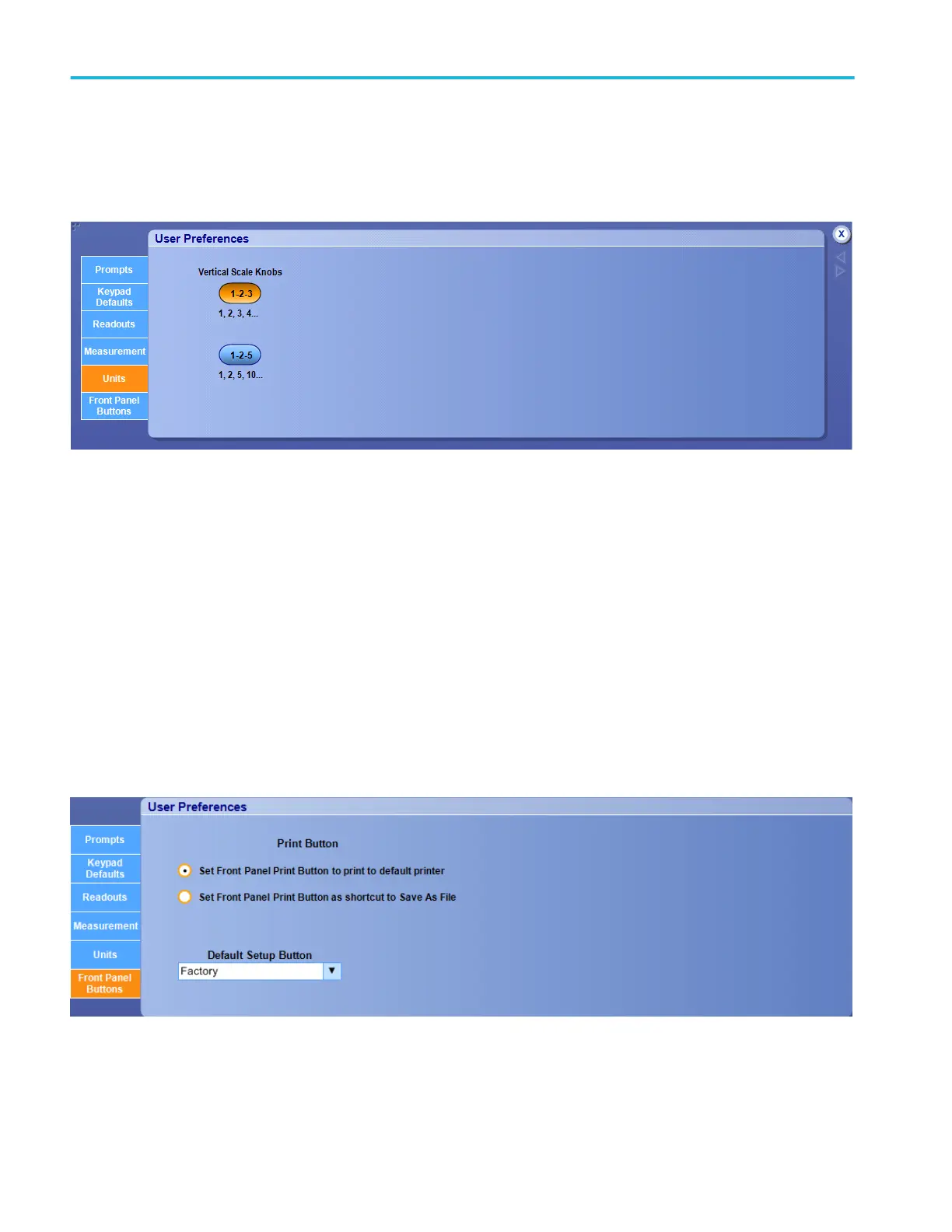

User preferences (Units)
From the Utilities menu, select User Preferences; then open the Units tab.
Overview. Use the Units tab to set the detents for the vertical scale controls.
To use. Click one of the buttons to set the vertical scale detents:
■
Click 1–2–3 to set the vertical detent increments to 1, 2, 3, 4...
■
Click 1–2–5 to set the vertical detent increments to 1, 2, 5, 10...
Behavior. If the user preference is set to 1–2–3, the vertical knobs will increase or decrease the scale in a 1–2–3... 10–20–30...
100–200–300... sequence.
If the user preference is set to 1–2–5, the vertical knobs will increase or decrease the scale in a 1–2–5... 10–20–50... 100–200–
500... sequence.
User preferences (Front panel buttons)
From the Utilities menu, select User Preferences; then open the Front Panel Buttons tab.
Overview. Use the Front Panel Buttons tab to set the function of the Print and the Default Setup buttons.
Utilities
562 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
