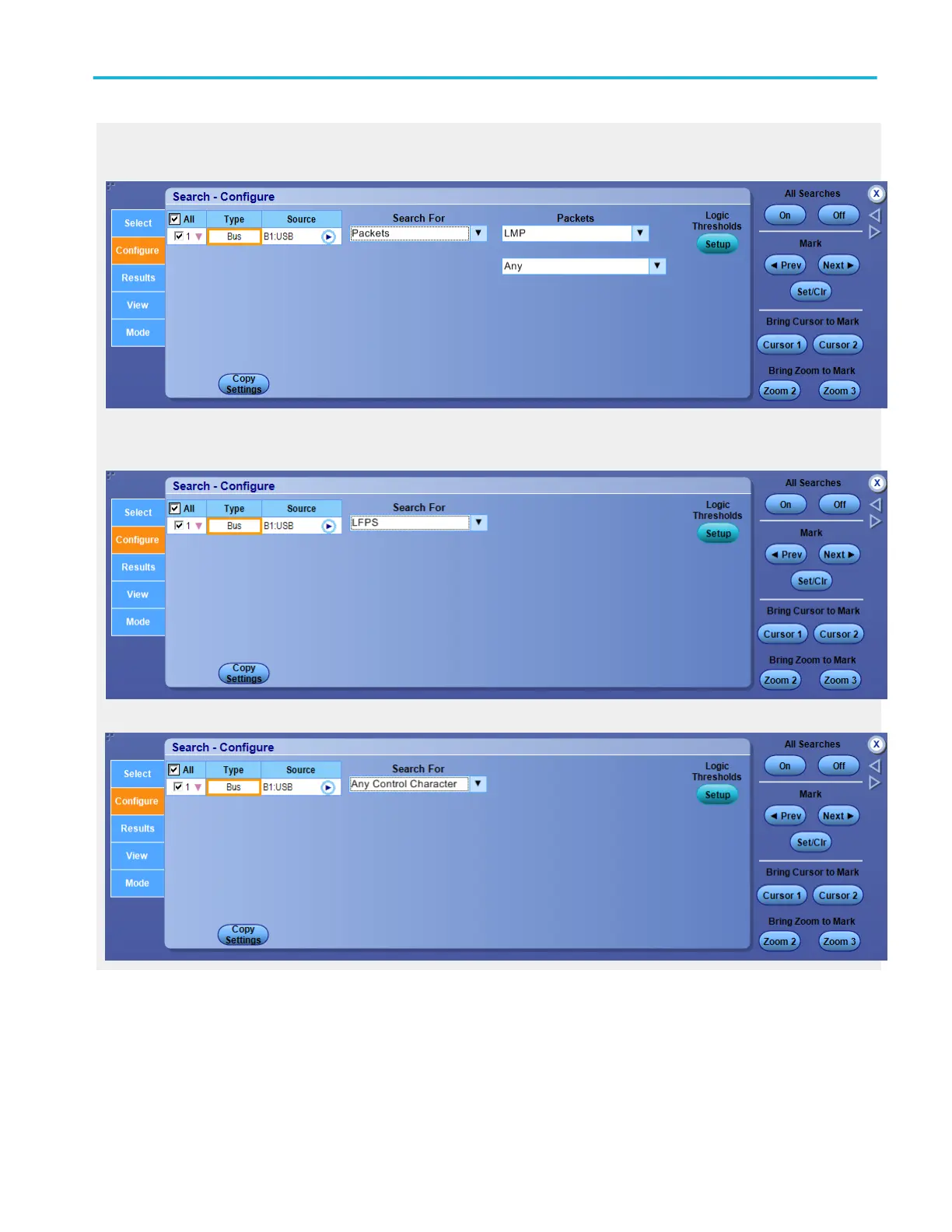

Search for packets

The data packet options available in Search For Packets are types of Packets.

Select the packet types.

Search for LFPS

Search for any control character

Analyzing waveforms

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 331
