Tektronix MSO5104B Printable Help

Learn about bus setups.

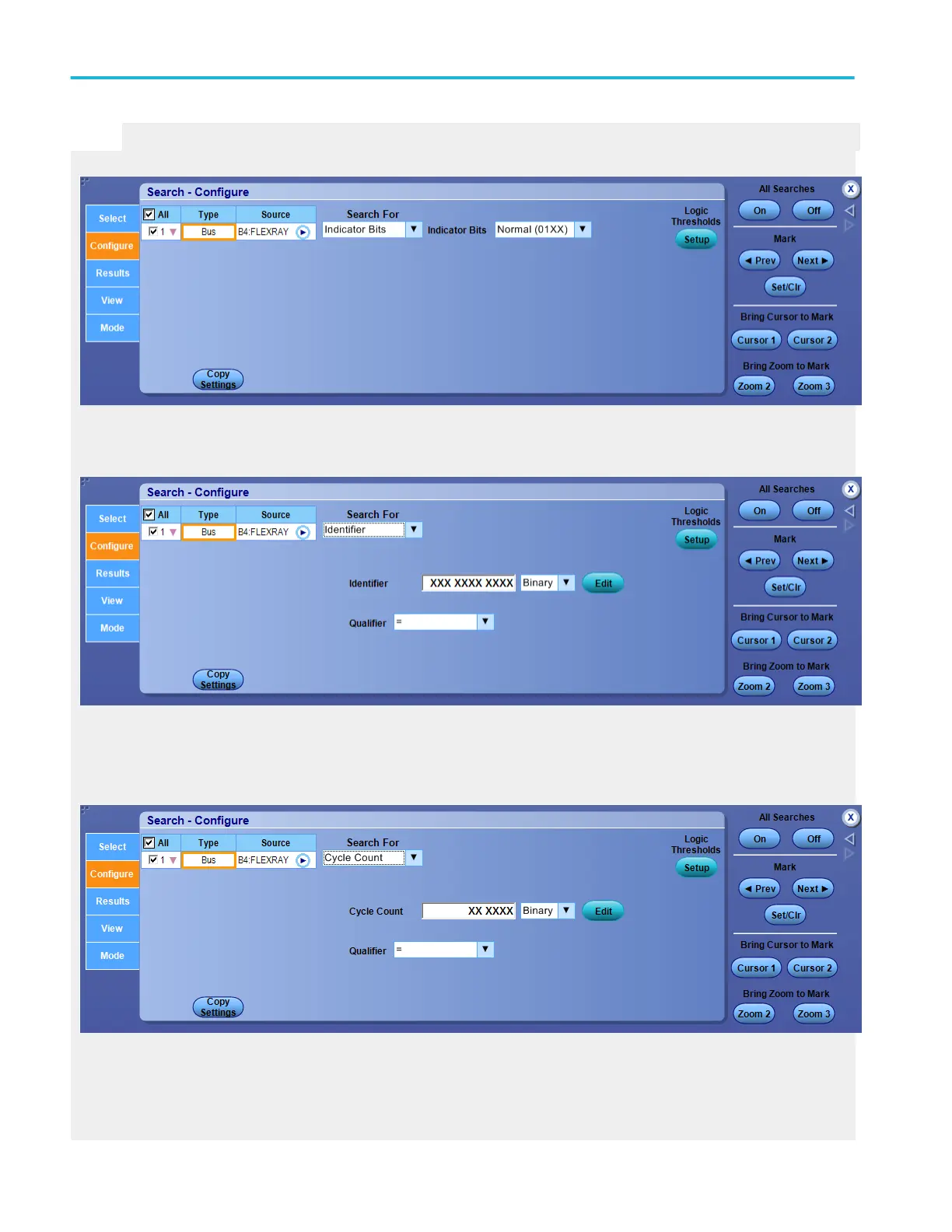

Search for indicator bits
Search for identifier
The data type options available in Search For Identifier are Identifier and Qualifier.
Select the Identifier from the drop-down list. Click Edit to enter the value. Click Logic Thresholds to adjust the logic thresholds.
Search for cycle count
The data type options available in Search For Cycle Count are Cycle Count and Qualifier.
Select the Quallifier from the drop-down list. Click Edit to enter the Cycle Count value. Click Logic Thresholds to adjust the logic
thresholds.
Search for header fields
The data type options available in Search For Header Fields are Indicator Bits, Identifier, Payload Length, Header CRC, and Cycle Count.
Analyzing waveforms
348 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
