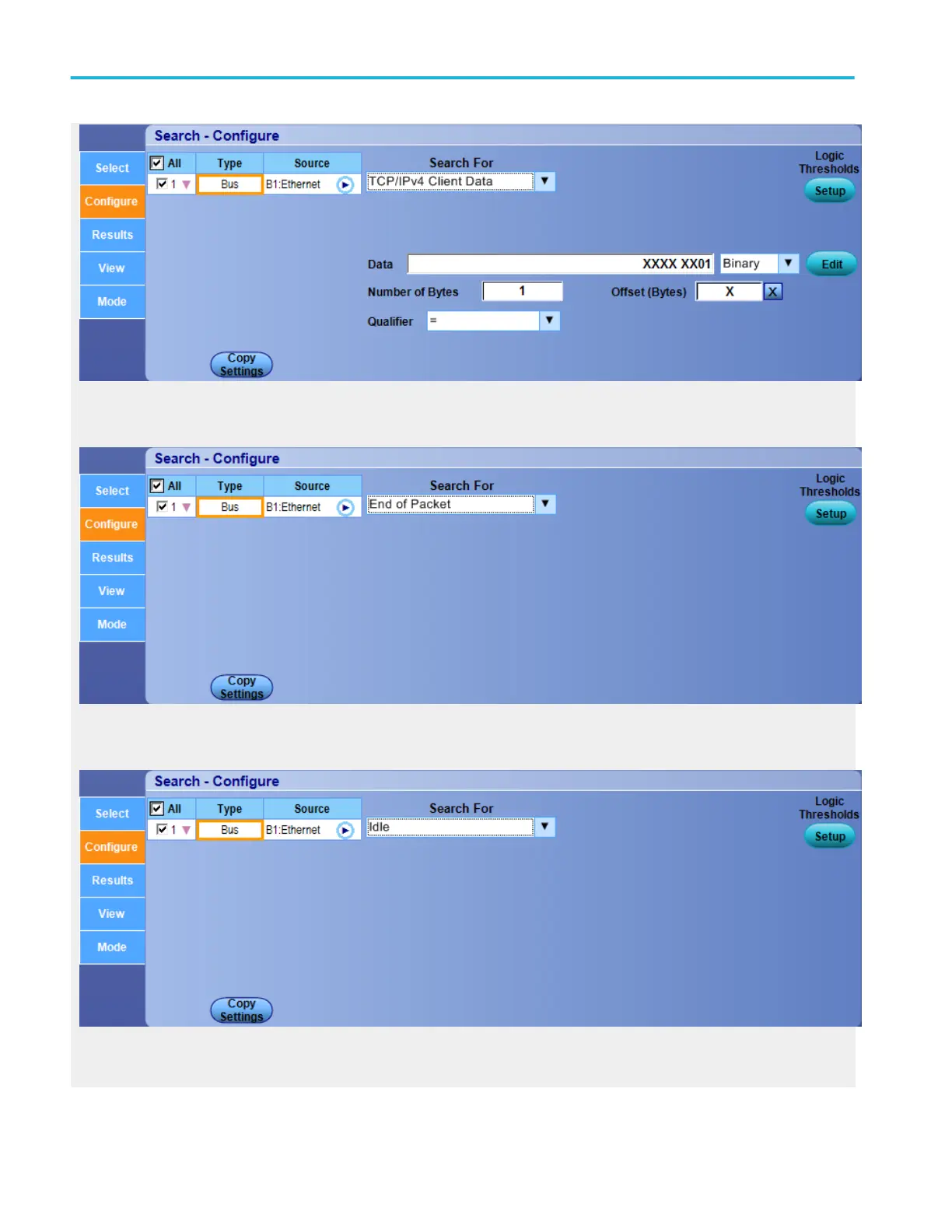

Select End of Packet to search for the Ethernet End of Packet.

Idle

Select Idle to search for an Ethernet Idle character.

FCS (CRC) error

Select FCS (CRC) Error to search for an Ethernet FCS error.
