Trigger on A only (Horizontal delay off). From the Trig menu, select A - B Trigger Sequence.

Overview. Use the controls in this window to define the parameters for the A ->B Sequence trigger with Horizontal Delay off.

For information on the controls, click the buttons.

■

Horizontal Delay Mode

■

Horizontal Position

■

A Trigger Level

■

Trigger Reset

■

Counter Measurements

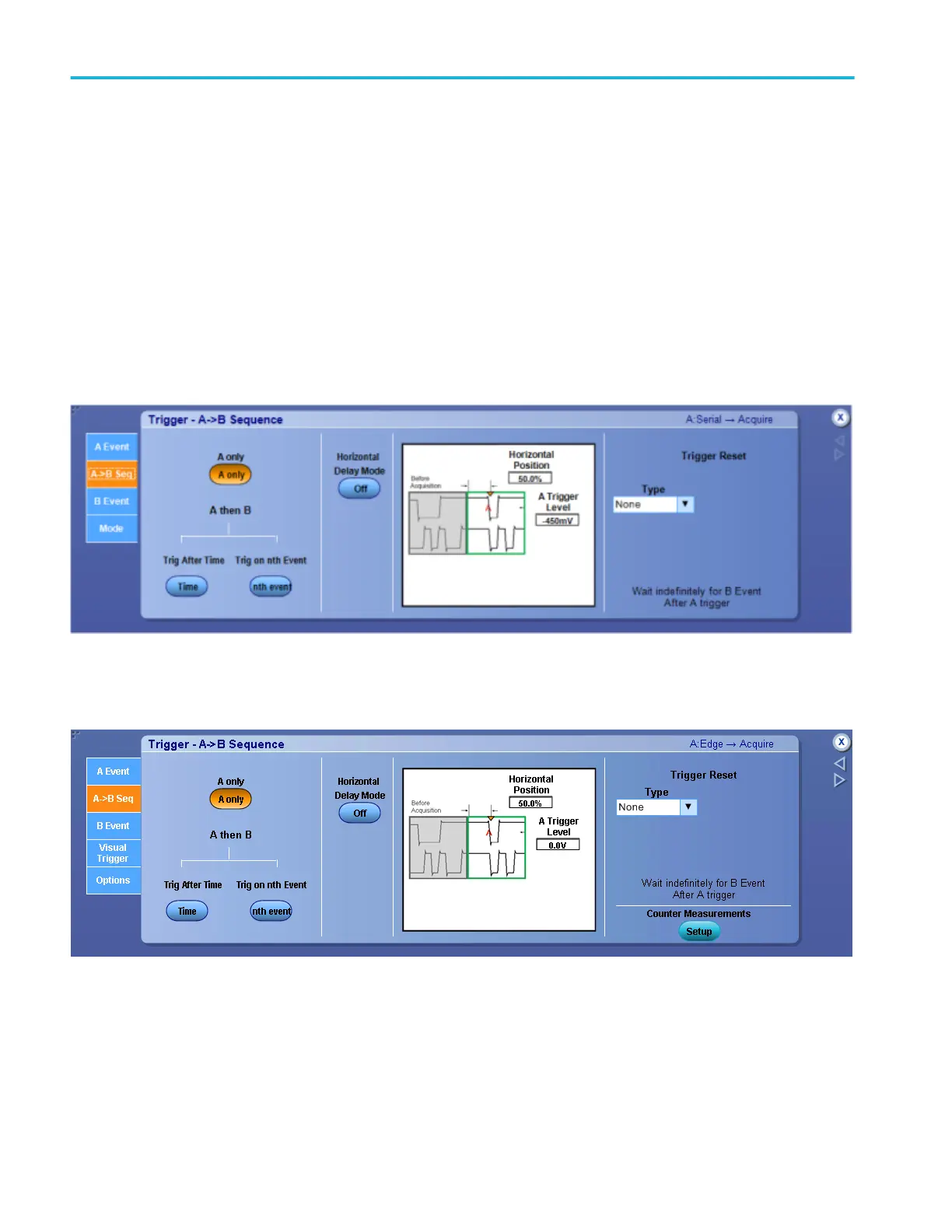

The following screen appears on DPO70000SX Series instruments:

The following screen appears on MSO/DPO5000B Series instruments:

Trigger setups

446 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
