Switching between multi-instrument modes. To switch among ATI, Non-ATI, and Time Synchronized modes, use the

following procedure:

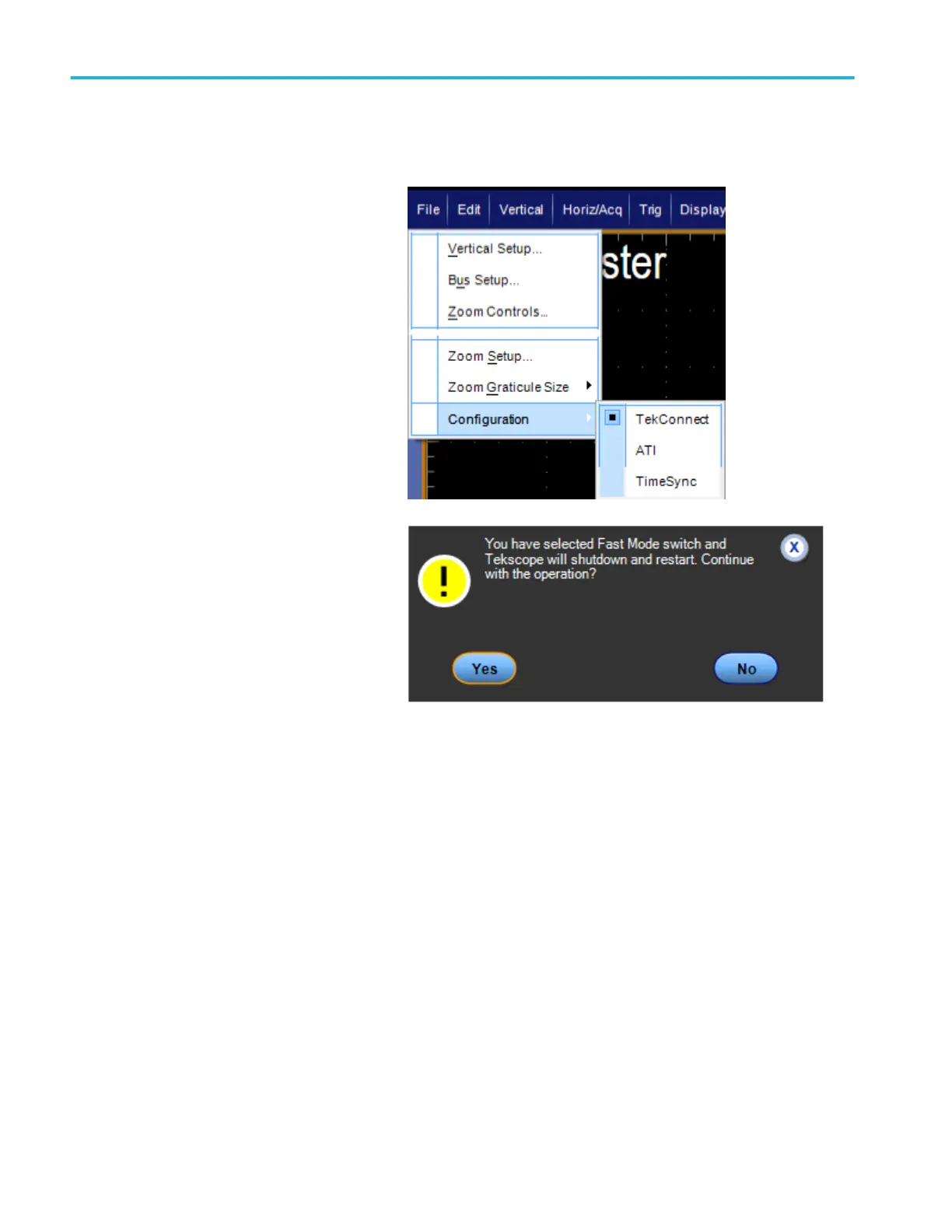

1. From the Vertical > Configuration menu

select either ATI, TekConnect, or

TimeSync.

2. Click Yes to continue.

Restart of a multi-instrument system. To restart your multi-instrument system without powering down the oscilloscopes, do the

following step:
