Tektronix MSO70000C/DX User Manual

Display a wavefo
rm

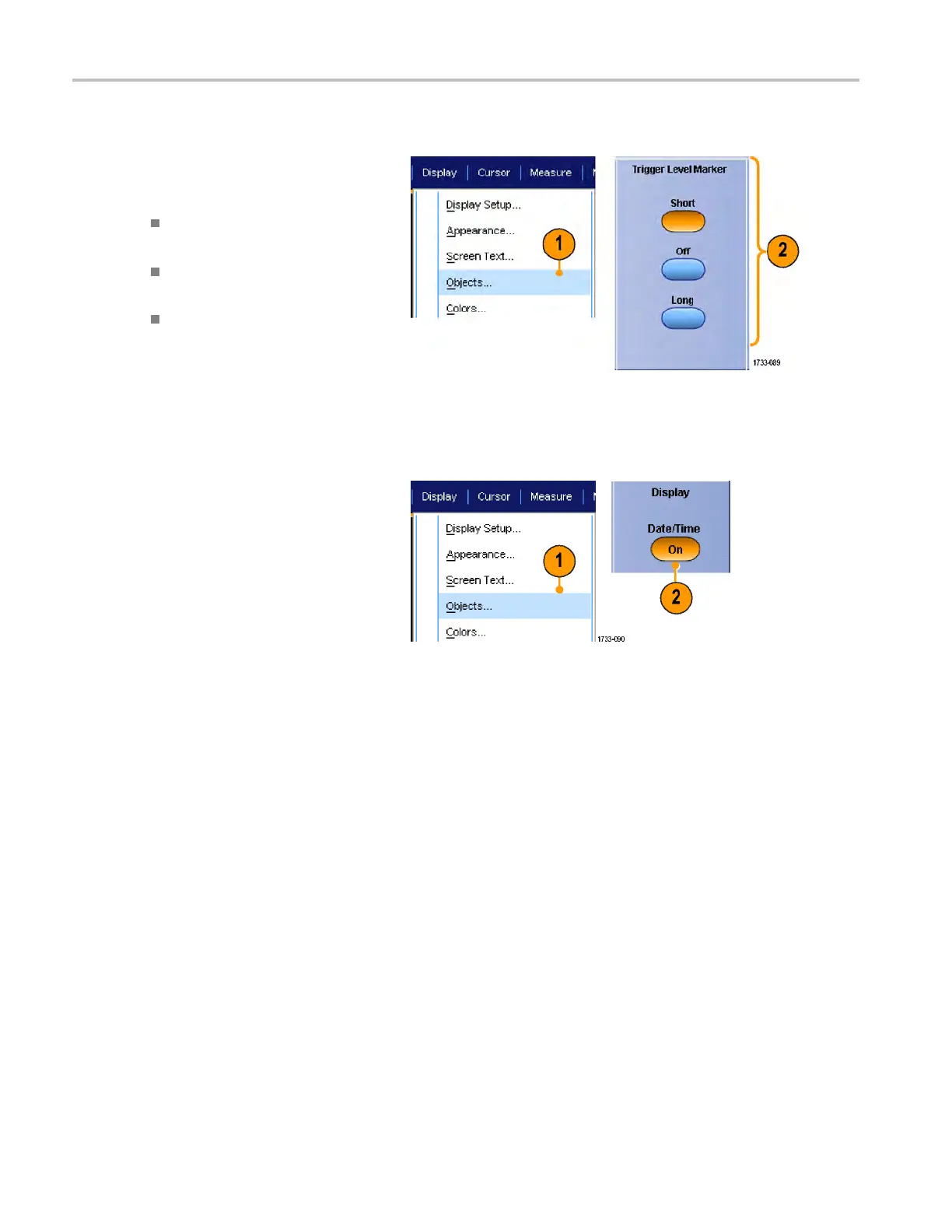

Setting the Trigger Level Marker
1. Select Displa
y > Objects....
2. Select one of t
he following:
Short displa
ys a short arrow on the
side of the graticule.
Long displays a horizontal line
across the graticule.
Off turns off the trigger level marker.
Displaying the Date and Time
1. Select Display > Objects....
2. Toggle the display of the date and time
on the graticule. Use the Utilities menu
to set the date and time.
94 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual

Tektronix MSO70000C/DX Specifications

General

Bandwidth	up to 33 GHz
Sample Rate	up to 100 GS/s
Input Coupling	AC, DC, GND
Input Impedance	50 Ω or 1 MΩ
Trigger Types/Modes	Edge, Pulse Width, Runt, Timeout
Vertical Resolution	8 bits
Interface	USB, LAN, GPIB, HDMI
Operating Temperature	0 °C to 50 °C
