Getting acquain
ted with your instrument

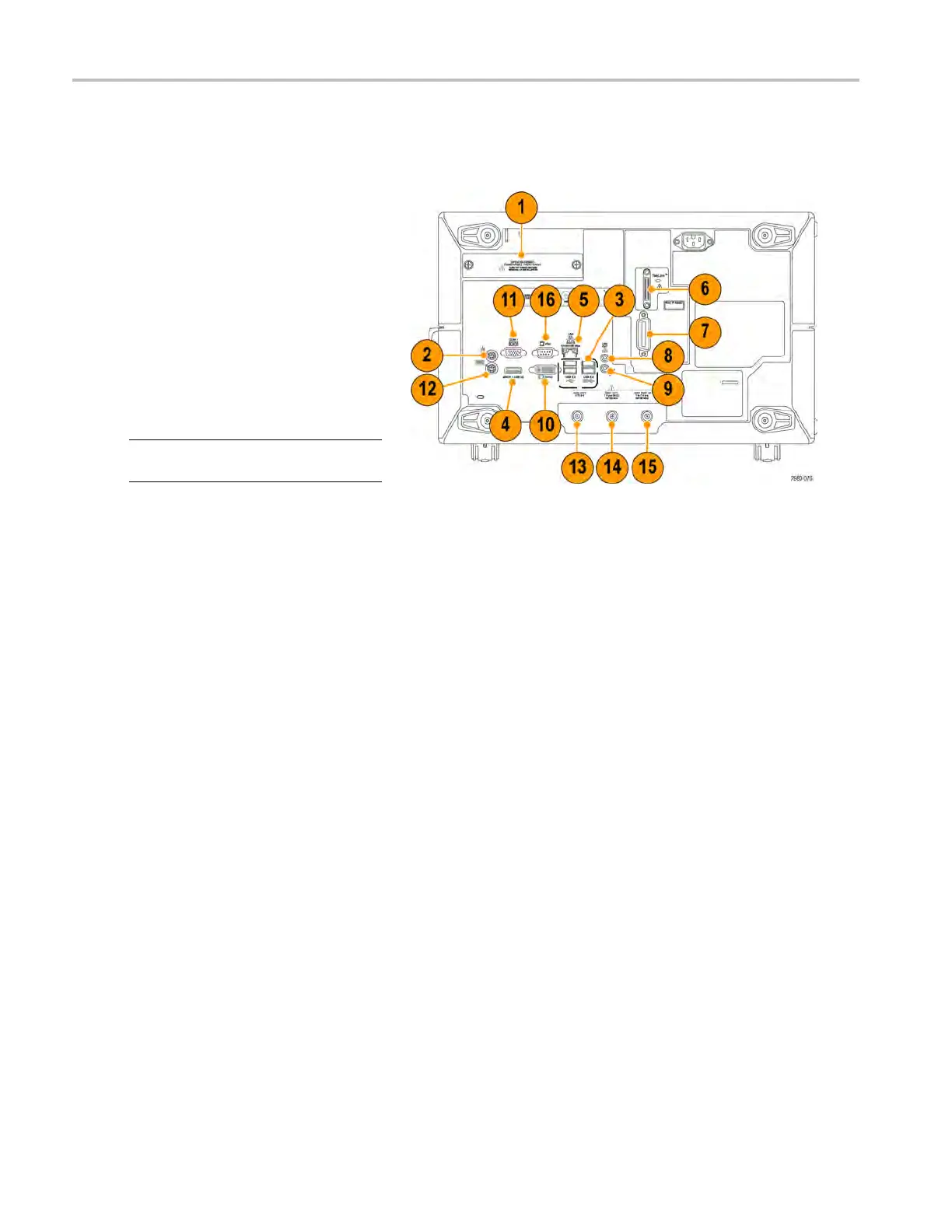

Side and rear panels
MSO/DPO70000DX and MSO/DPO70000C
1. Removable hard disk drive
2. PS-2 connector for mouse
3. USB host ports
4. Passive eSATA Port
5. RJ-45 LAN connector to connect to
network
6. TekLink connector
7. GPIB port to connect to controller
8. Line Out connector for speaker
NOTE. Some instruments may have
additional audio connectors.
9. Mic connector for microphone
10. DVI-D Video port
11. COM 1 and COM 2 serial ports
12. P S-2 connector for keyboard
13. A uxiliary output
14. Reference output
15. External reference input
16. V GA port
MSO/DPO70000DX an d MSO/DPO70000C Series
20 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
