Acquisition
Setting up digital channels
You c an set a digital channel threshold, size, position and label on MSO70000C/DX and MSO5000 Series instruments,
DPO5000 Series instruments with option M SOE installed, and DPO70000DX instruments with option MSOU installed.

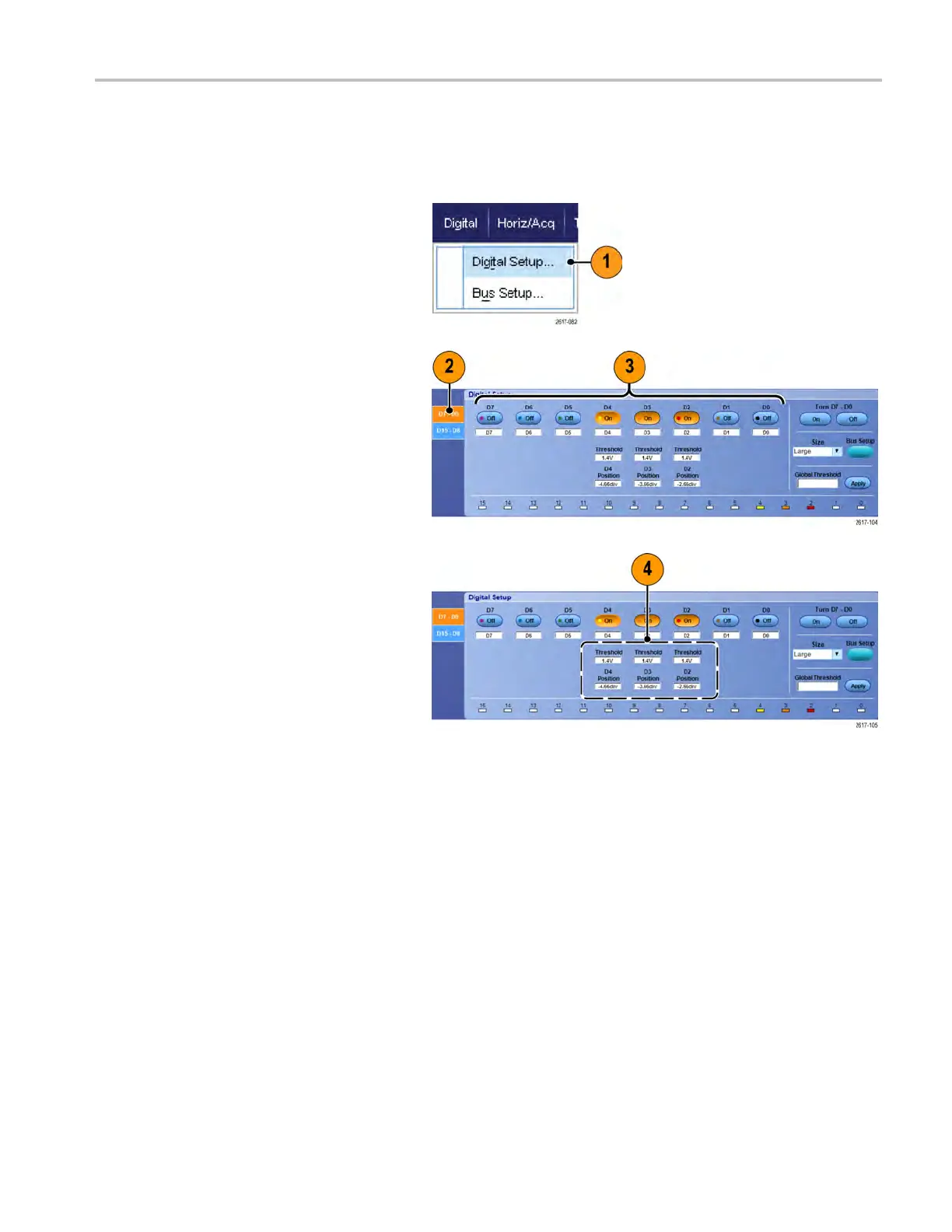

1. Select D igital > Digital S etu p.
2. Select the
D7 - D0 or D15 - D8 tab for
the digital channels you want to set up.
3. Click a digital channel button to toggle
the display of the digital channel on or off.
4. Click Threshold or Position and adjust
them usi
ng the keyboard or multipurpose
knobs. Or, s et the threshold of all 16
channels by entering a Global Threshold
value a
nd clicking Apply.
MSO/DPO70000DX, MSO/DPO70000C, DP O7000C, and MS O/DPO5000 Series U ser M anual 51
