Display a wavefo
rm

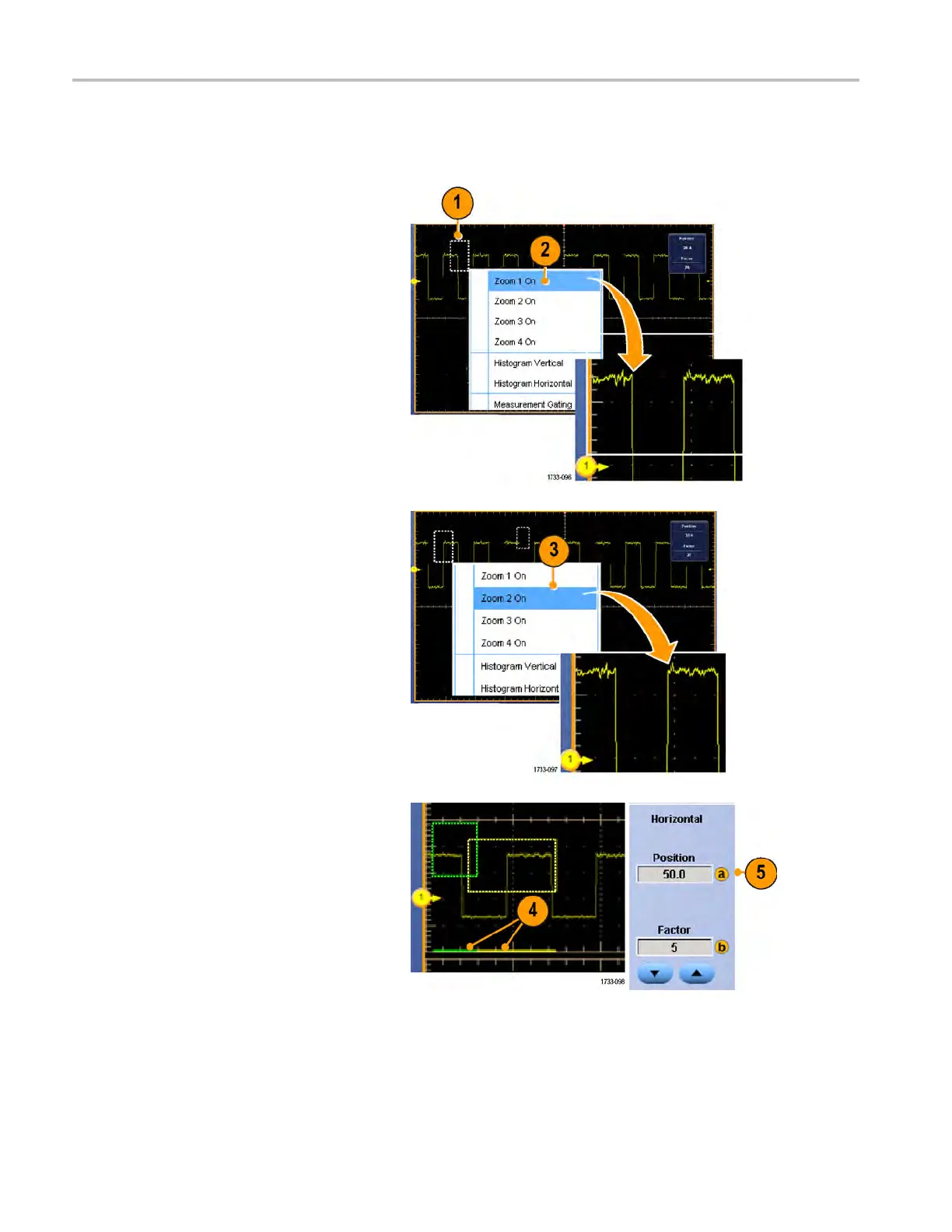

Zooming in multiple areas
When you want to view and compare m ultiple areas of one record at the same time, use the following procedure.
1. Click and drag a box around the area of
the waveform that you w ant to zoom.
2. Select Zoom 1 On.
3. Click and drag a box around another
area of the waveform that you w ant to
zoom, and then select Zoom 2 On.
4. To adjust the zoomed area horizontally,
click the horizontal marker below the
Zoom box to select the zoomed area.
5. Use the multipurpose knobs to adjust
the horizontal position and factor of the
selected zoom area.
98 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
