Tektronix MSO70000C/DX User Manual

Saving and recal
ling information

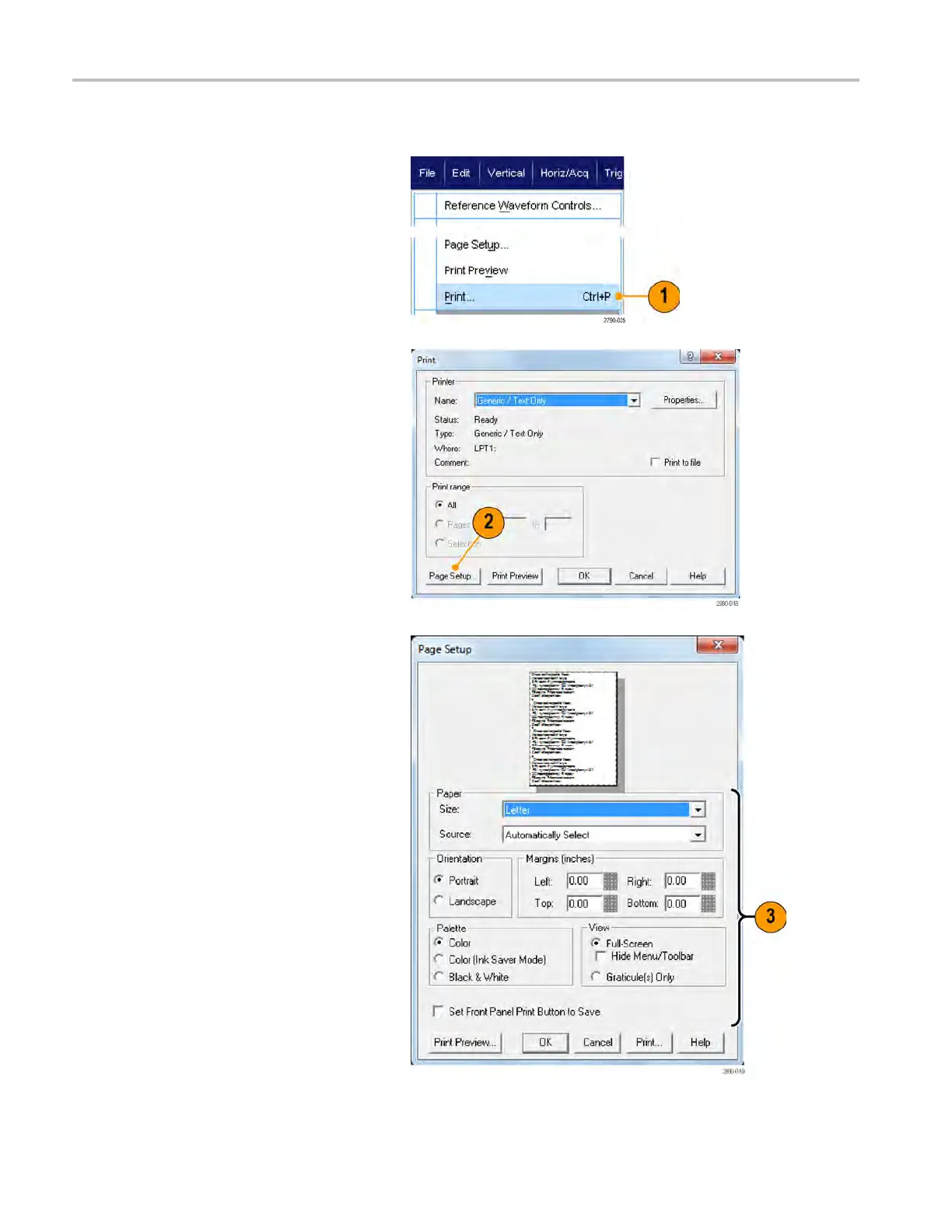

Printing a hard copy
1. To print a hard copy, push the print button
or select File > Print. If necessary, make
changes to the
page orientation in the
Page Setup dialog box.
Your Print and Page Setup dialog boxes will
depend on th
e printer you are using.
2. Click Page
Setup....
3. Select t
he printing parameters.
162 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series User Manual

Tektronix MSO70000C/DX Specifications

General

Bandwidth	up to 33 GHz
Sample Rate	up to 100 GS/s
Input Coupling	AC, DC, GND
Input Impedance	50 Ω or 1 MΩ
Trigger Types/Modes	Edge, Pulse Width, Runt, Timeout
Vertical Resolution	8 bits
Interface	USB, LAN, GPIB, HDMI
Operating Temperature	0 °C to 50 °C
