Tektronix MSO70000C/DX User Manual

Application exa
mples
8. Depending on your Trigger On selection,
you m ay need to make additional
selections.

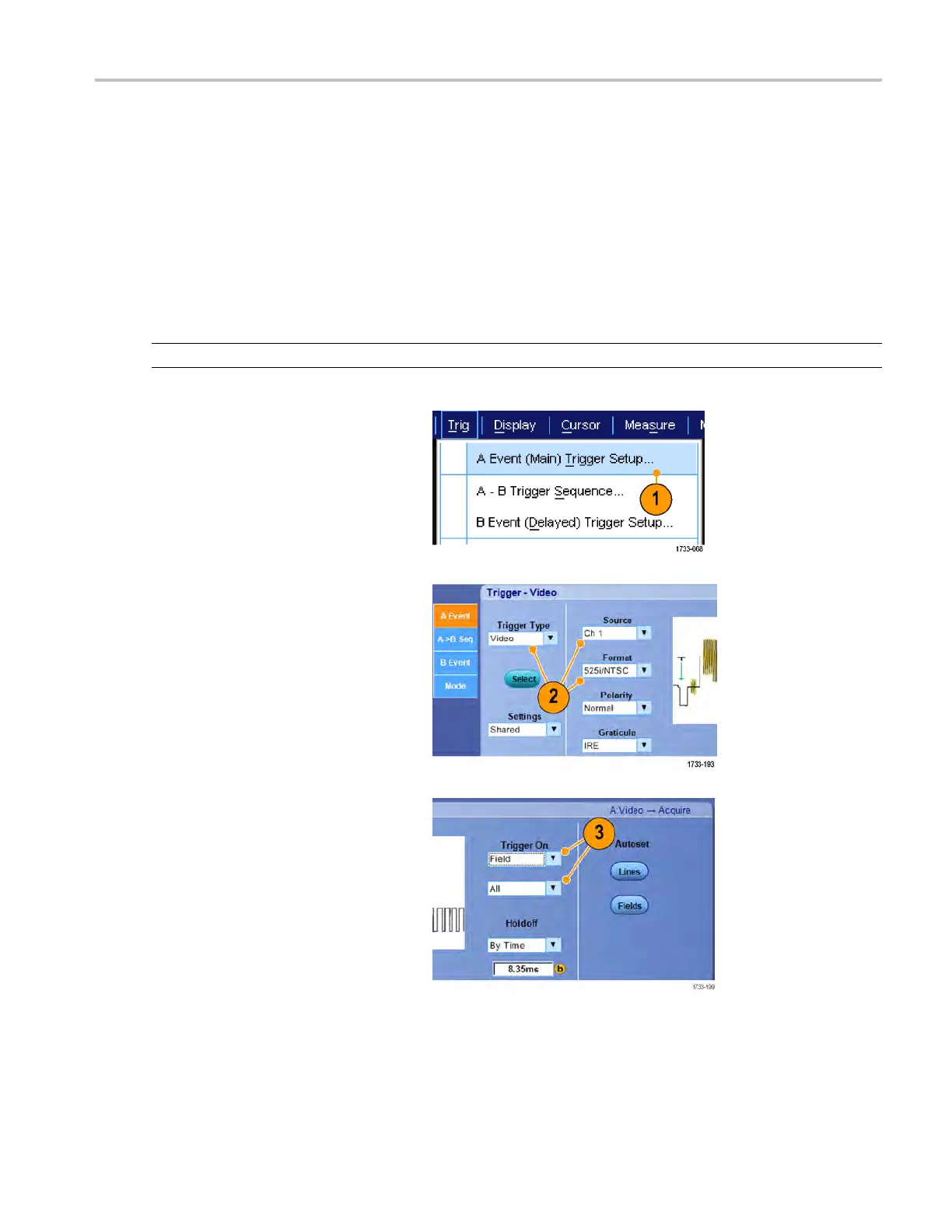

Triggering on a video signal
The instrument supports triggering on NTSC, SECAM, PAL, and high definition signals.
To trigger on the video fields:
NOTE. The video trigger type is available only on DPO7000C, MSO5000, and DPO5000 Series instruments.
1. Select Trig > A Event (Main) Trigger
Setup....
2. Set the A trigger type and source in the
A Event tab.
Select
Format > 525i/NTSC.
3. Select Trigger On > Field.
Select Odd, Even,orAll fields.
MSO/DPO70000DX, MSO/DPO70000C, DP O7000C, and MS O/DPO5000 Series U ser M anual 171

Tektronix MSO70000C/DX Specifications

General

Bandwidth	up to 33 GHz
Sample Rate	up to 100 GS/s
Input Coupling	AC, DC, GND
Input Impedance	50 Ω or 1 MΩ
Trigger Types/Modes	Edge, Pulse Width, Runt, Timeout
Vertical Resolution	8 bits
Interface	USB, LAN, GPIB, HDMI
Operating Temperature	0 °C to 50 °C
