Tektronix MSO70000C/DX

Acquisition
Viewing analog characteristics of digital waveforms
iCapture allows you to view the analog characteristics of digital channel signals. Additional measurement capabilities
are available while viewing the analog characteristics o f a waveform. iCapture is available on MSO70000C/DX Series
instruments and on DPO70000DX instruments with option MSOU installed..

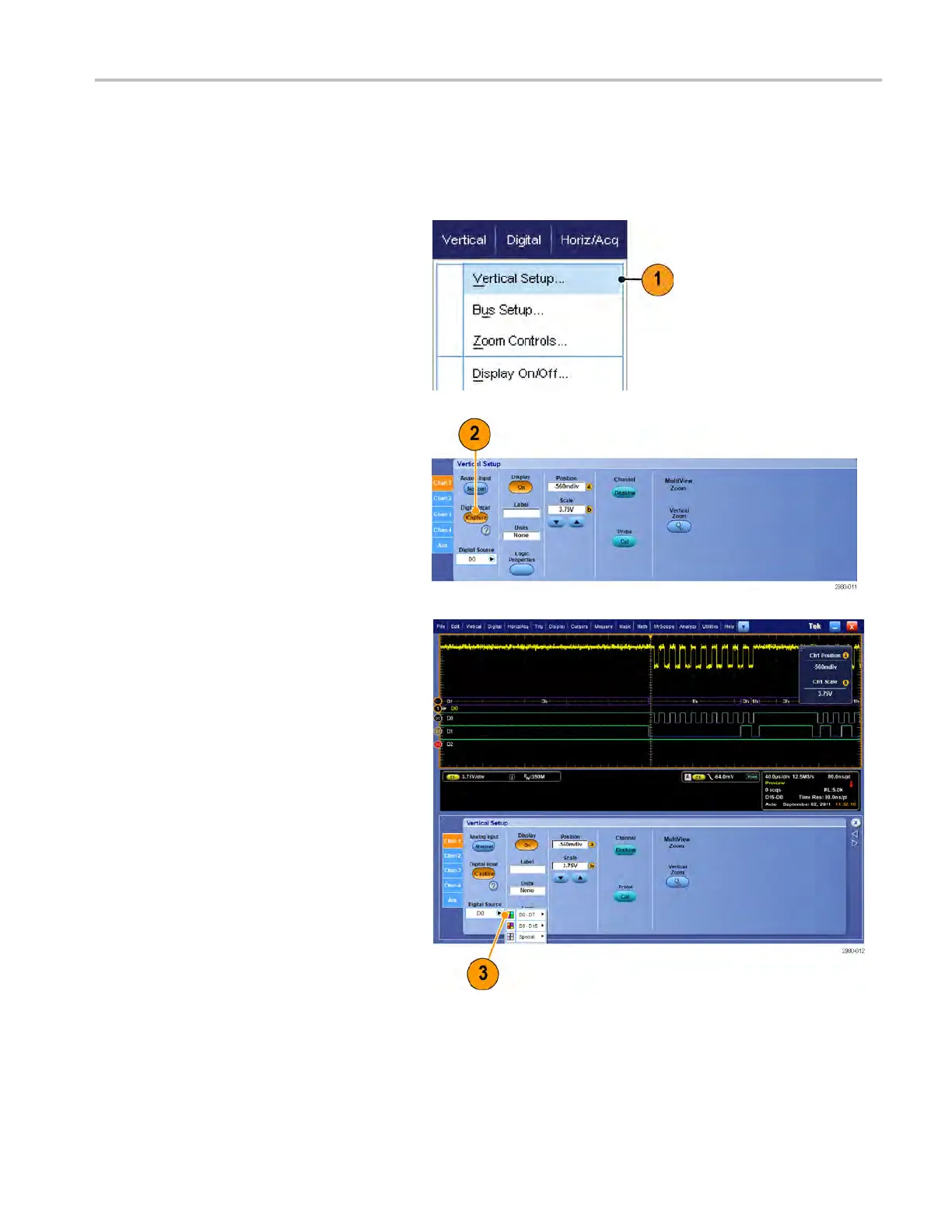

1. Select Vertical > Vertical Setup.
2. Press the Digital Input iCapture button.
3. Click D
igital Source and select a digital
channel to send through the analog
input.
MSO/DPO70000DX, MSO/DPO70000C, DP O7000C, and MS O/DPO5000 Series U ser M anual 59
