Tektronix MSO70000C/DX User Manual

Appendix D
Connecting the probe to the oscilloscope

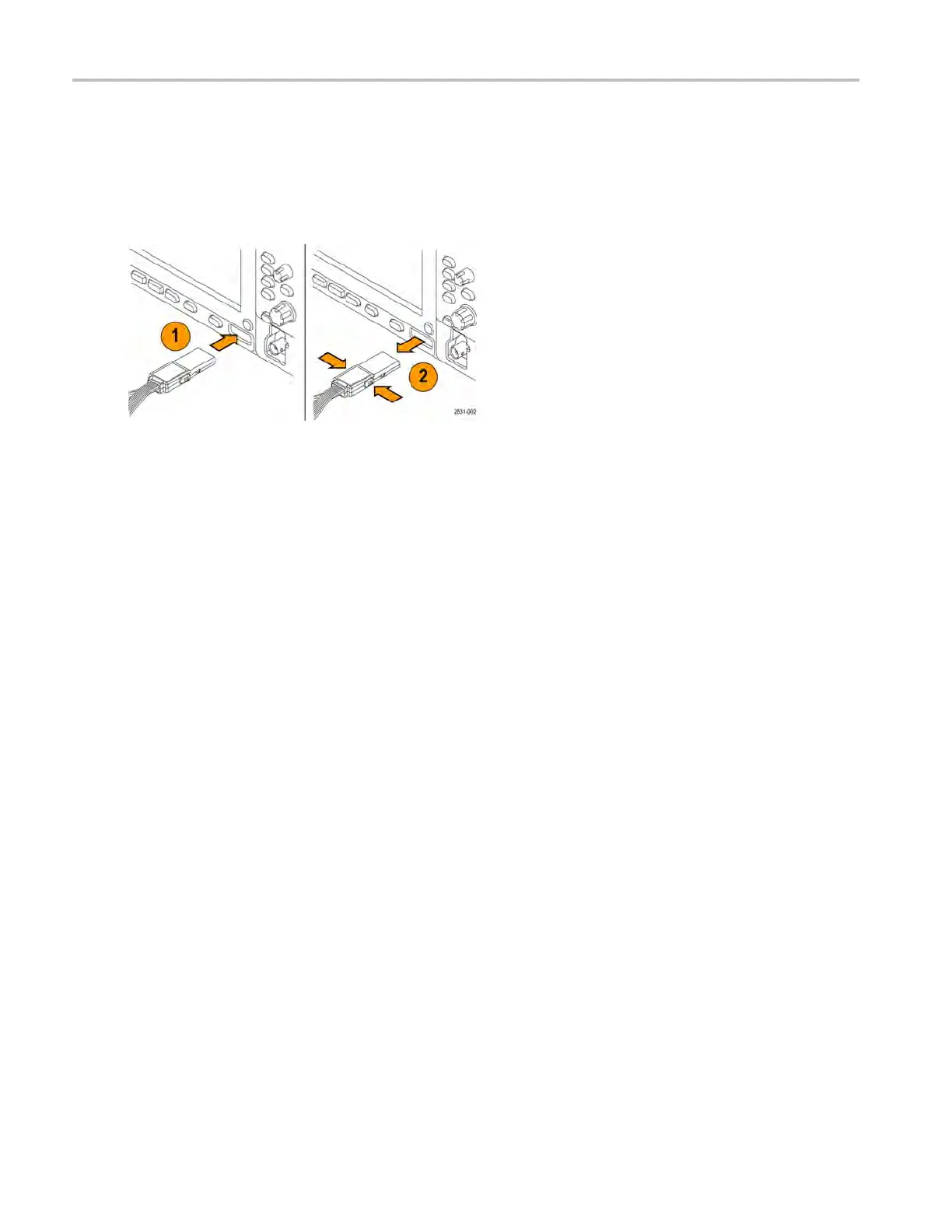

Connect the probe as shown in the illustration below.
1. Insert the probe label-side up into the connector on the oscilloscope.
2. To remove the probe, squeeze the buttons on the side and pull out the probe.
184 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series User Manual
