Install your ins
trument
Adding a second monitor
Yo u can operate the instrument while using Windows and installed applications on an external monitor. Follow the procedure
below to set up a dual monitor configuration.
MSO/DPO70000DX and MSO/DPO70000 C Series

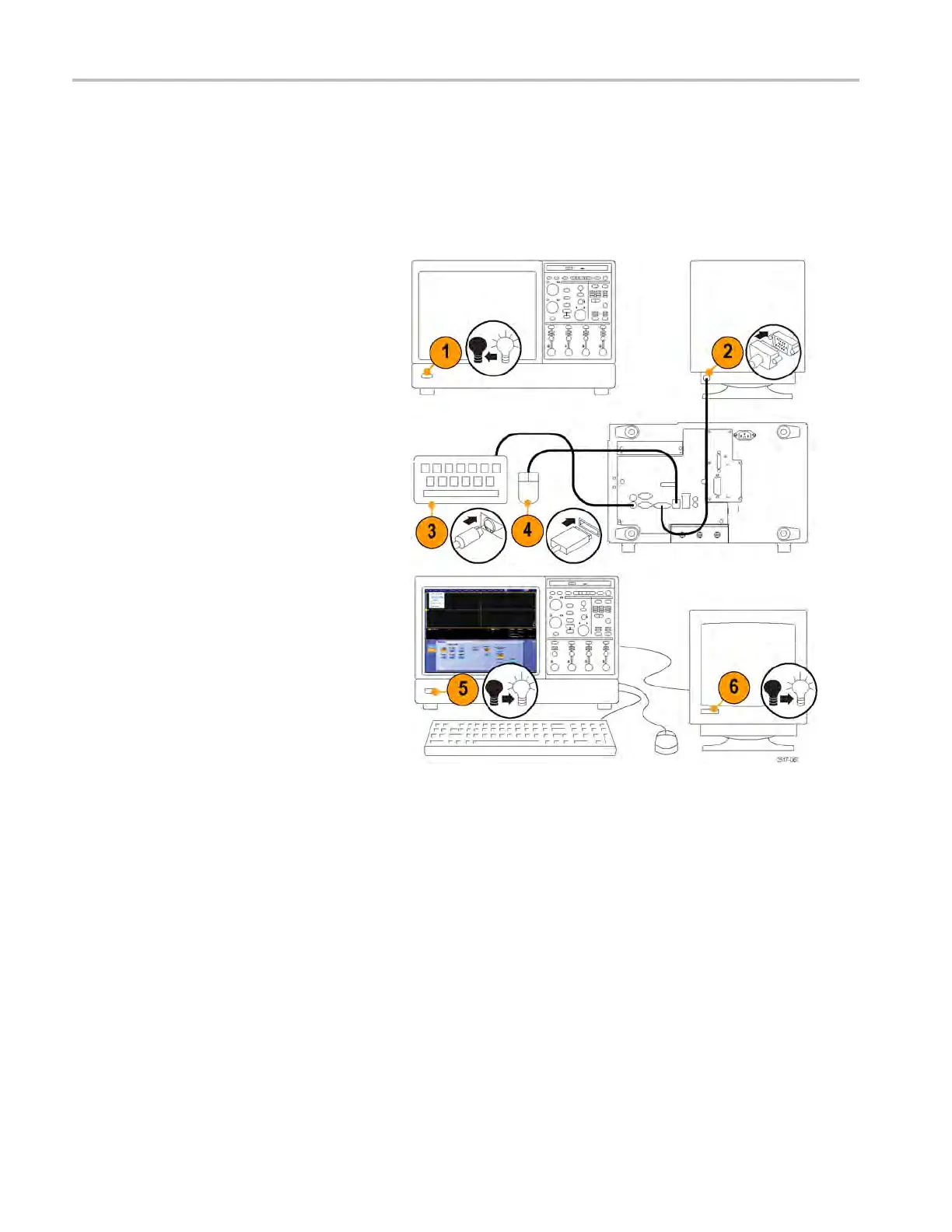

1. Turn power off.
2. Connect second monitor. If using a VGA
monitor with an M SO/DPO 70000C, use
a DVI to VGA adapter.
3. Connect keyboard.
4. Connect mouse.
5. Turn instrument power on.
6. Turn monitor power on.
MSO/DPO70000DX an d MSO/DPO70000C Series
12 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO /DP O5000 Series U ser Manual
