MyScope
Using MyScope control windows

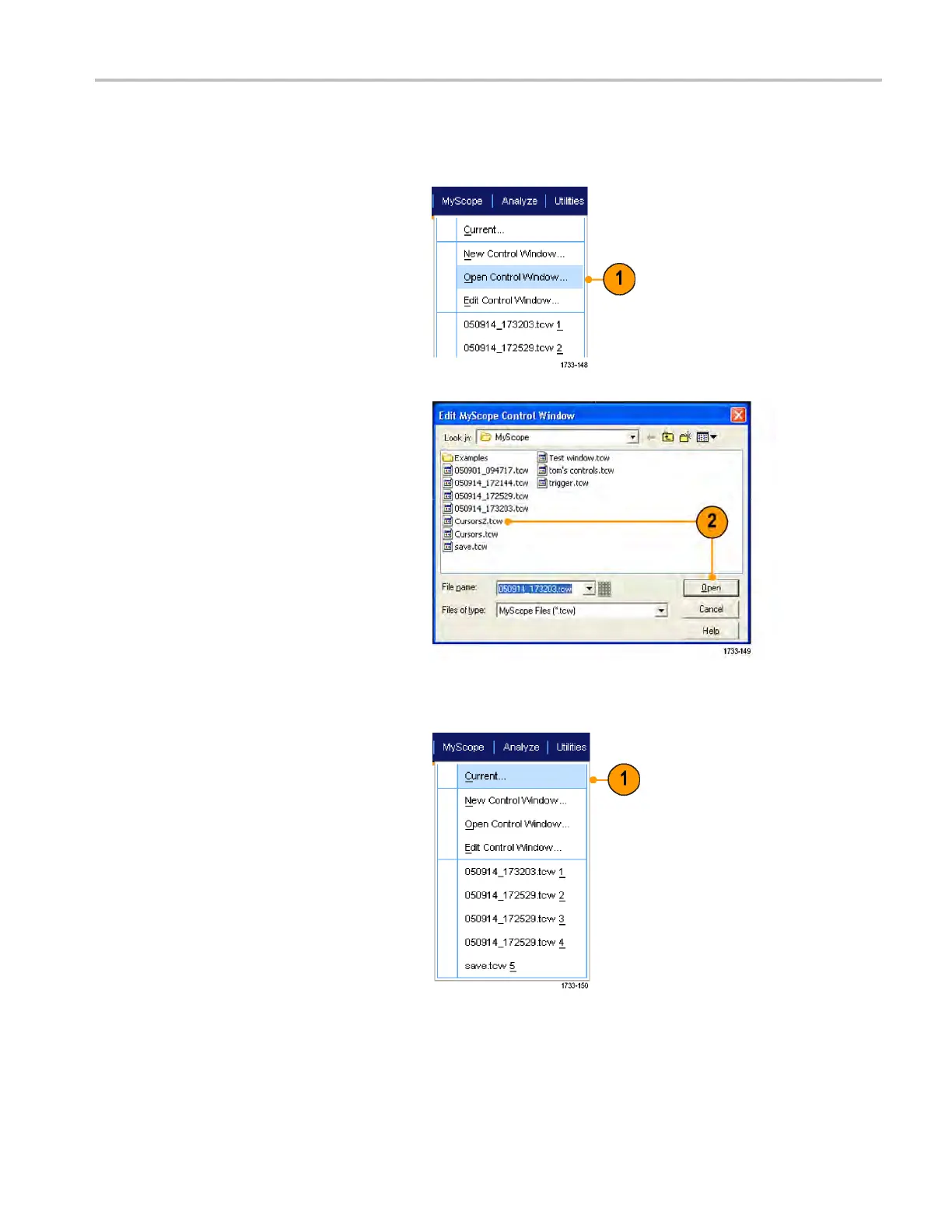

To open a previously dened MyScope control window, do the following:
1. Select MyScope > Open Control
Window... or one of the ve most
recently used MyS cope windows.
2. Select the
MyScope control window you
want to use, and then click Open.
To display the active MyScope control window, do the following:
1. Select MyS cope > Curr ent... or click
MySco
pe in the toolbar mode. (Your
MyScope control window remains active
even when it is not displayed.)
MSO/DPO70000DX, MSO/DPO70000C, DP O7000C, and MS O/DPO5000 Series U ser M anual 147
