Saving and recal
ling information

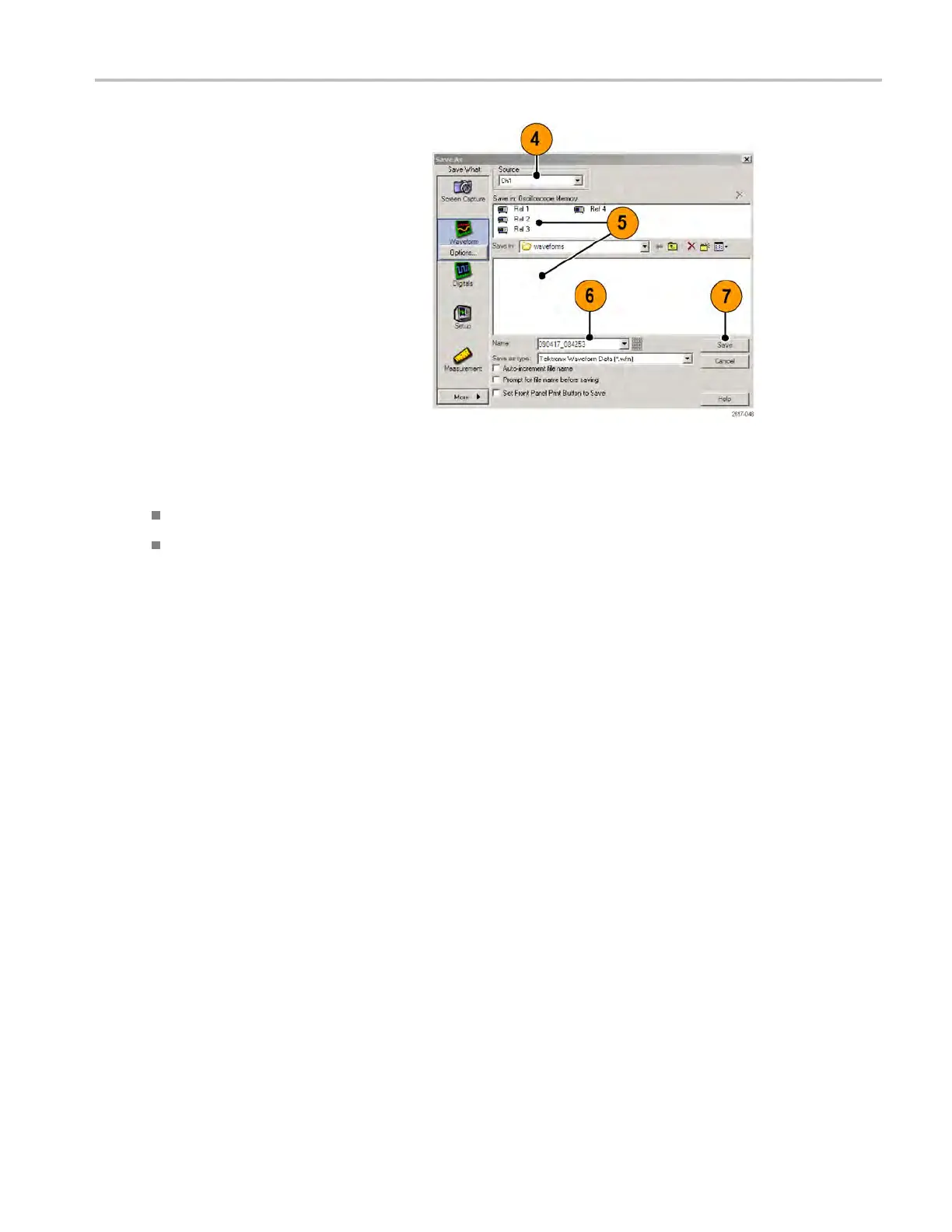

4. Select the Source.
5. You can either save the waveform as a
reference waveform in the instrument
memory or as a .
wfm file in a Windows
directory. To save the waveform as a
reference, select Ref 1–4. To save as a
.wfm file, sel
ect the location where you
want to save the waveform.
6. If you are saving as a .wfm file, type in a
file name, or use the default.
7. Click Save.
Quick tips
Select Auto-inc rement file n a me to save similar waveforms without having to retype the entire name.
To quickly save m u lti p le waveforms, se lect Set Front Panel Print Button to Save, and then click Save. You can now
save a waveform by pushing the front-panel Print button.
