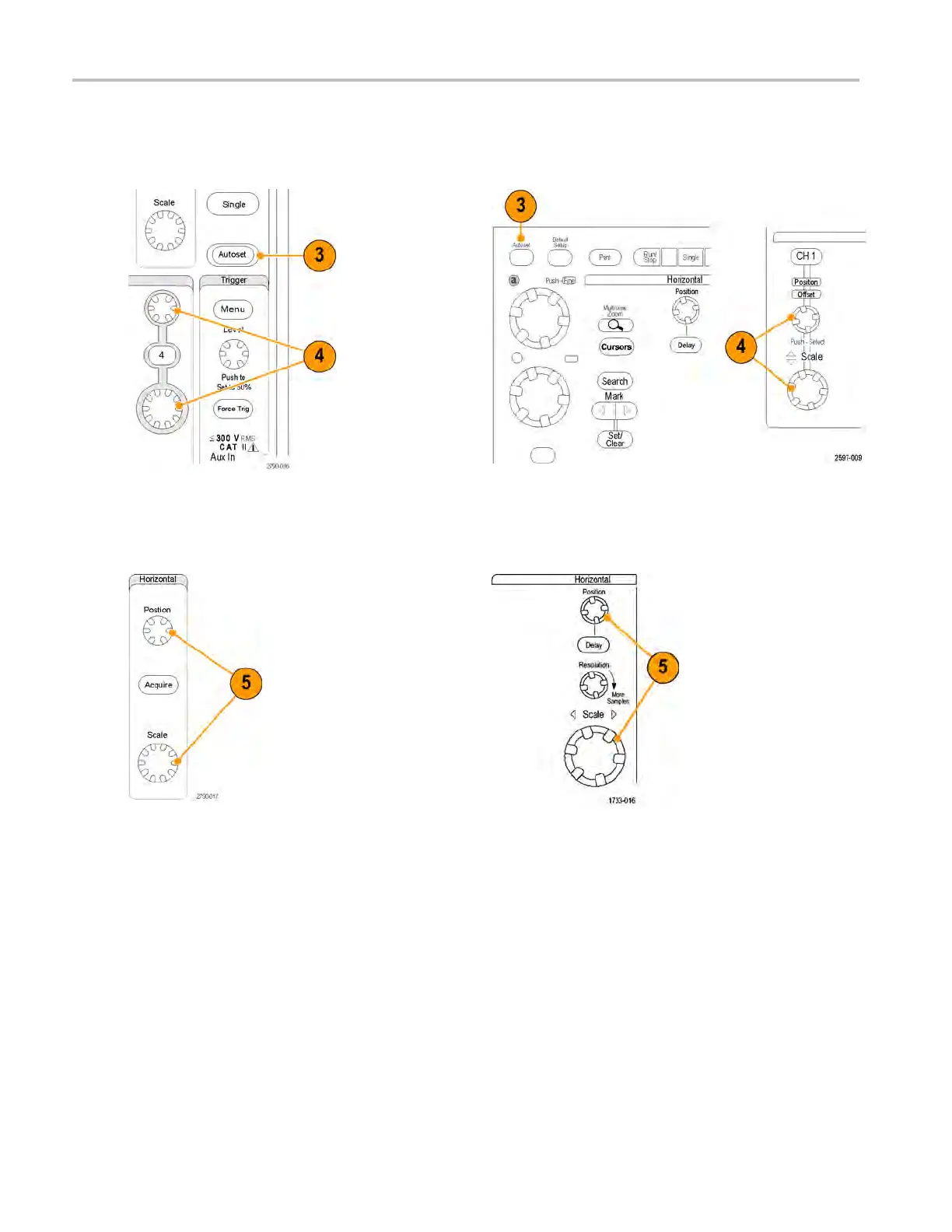

3. Push Autoset.
4. Adjust the ver
tical position, scale, and offset using the front-panel knobs.
MSO5000 a
nd DPO5000 Series
MSO/DPO7 0000DX, MSO/DPO70000C, and DPO7000C Ser ies
5. Adjust th
e horizontal position and scale using the front-panel knobs.
The horizontal position determines the number of pretrigger and posttrigger samples.
MSO5000 and DPO5000 Seri es
MSO/DPO7 0000DX, MSO/DPO70000C, and DPO7000C Ser ies
