Removal and Installation Procedures

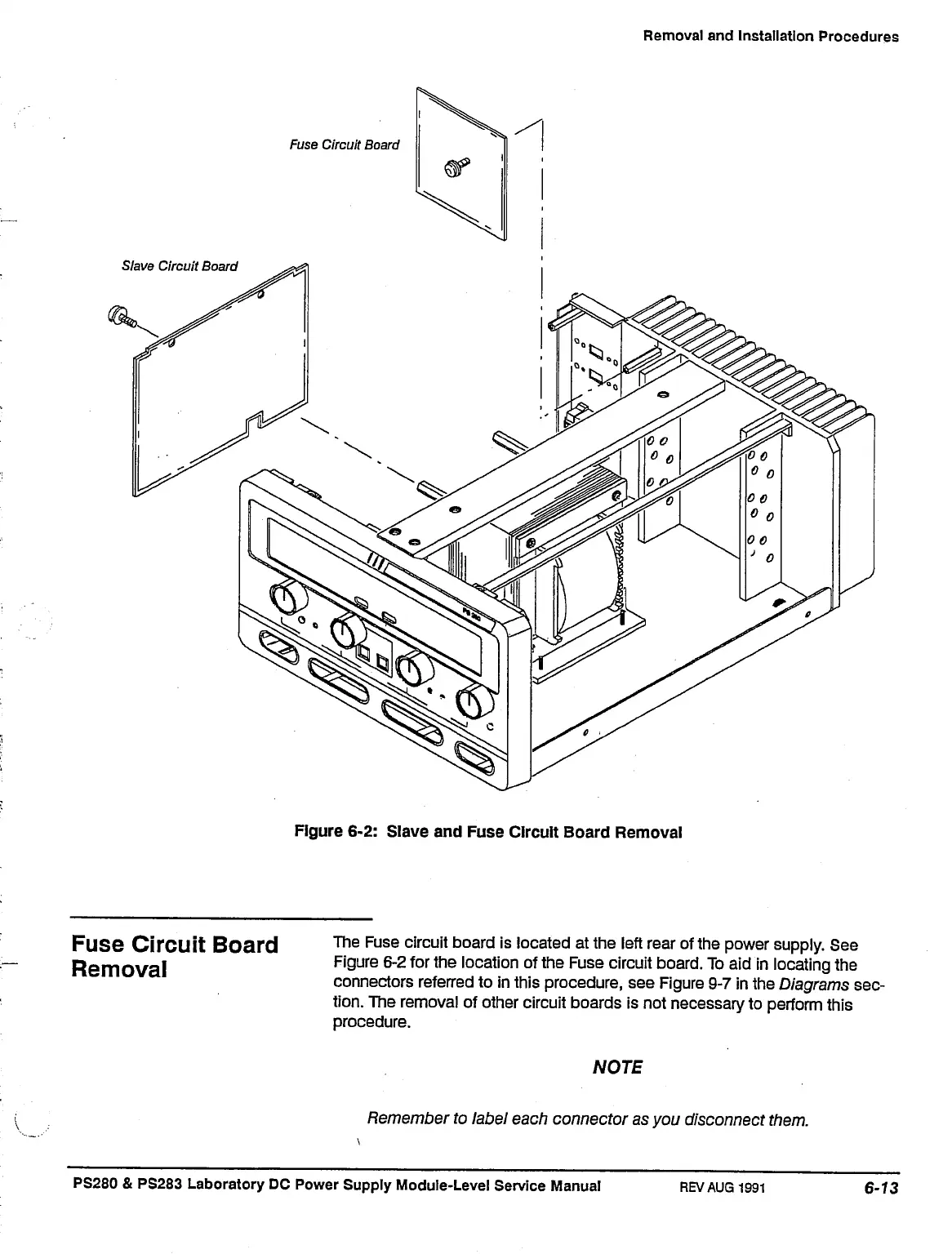

Figure 6-2: Slave and Fuse Circuit Board Removal
Fuse Circuit Board
Removal
The Fuse circuit board is located at the left rear of the power supply. See
Figure 6-2 for the location of the Fuse circuit board. To aid in locating the
connectors referred to in this procedure, see Figure 9-7 in the Diagrams sec-
tion.
The removal of other circuit boards is not necessary to perform this
procedure.
NOTE
Remember to label each connector as you disconnect them.
PS280
&
PS283 Laboratory
DC
Power Supply Module-Level Service Manual
REV AUG
1991
