Tektronix PS280 Service & Reference Guide

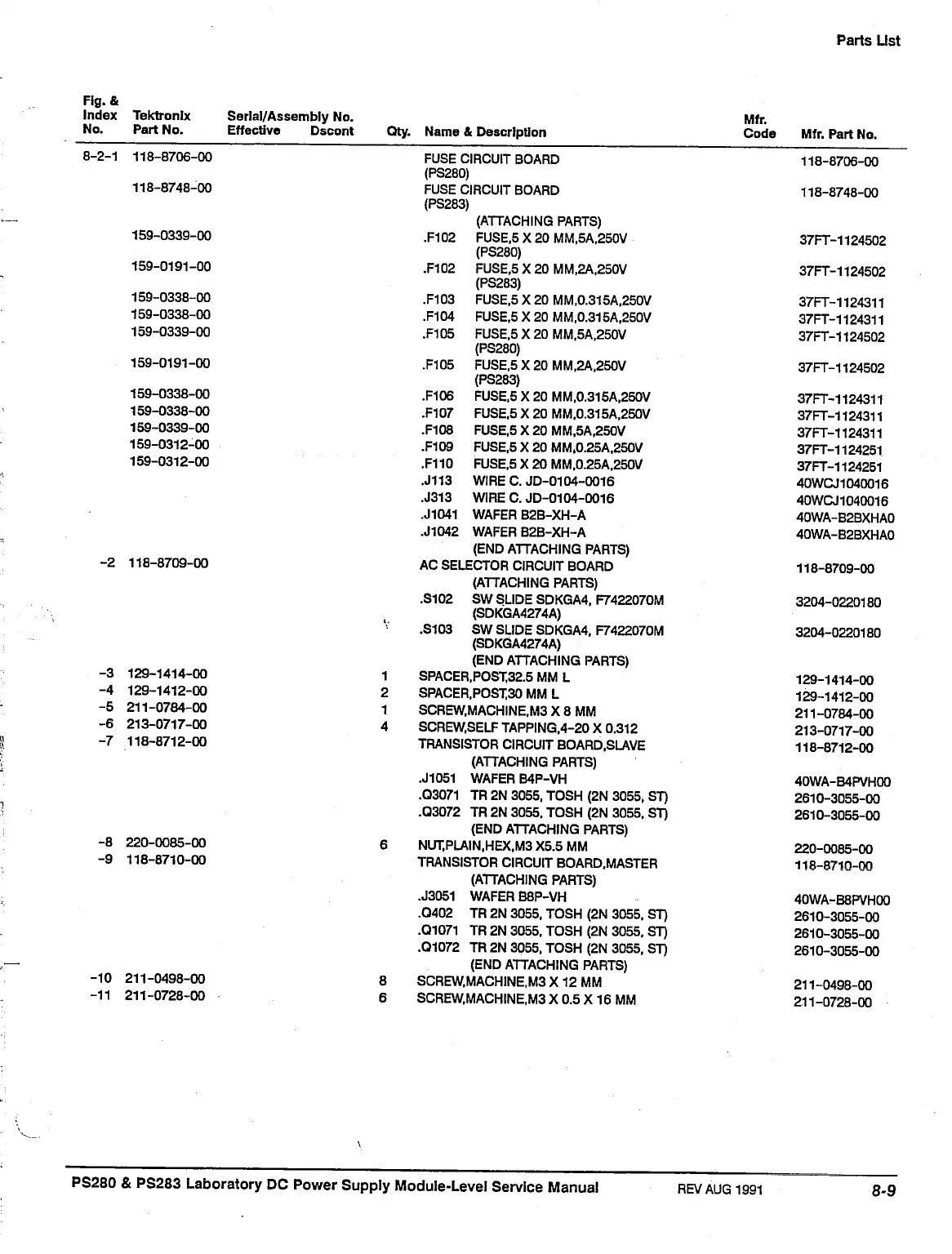

Parts List
Index Tektronix
No. Part No.
Serial/Assembly No.
Effective Dscont
Qty. Name & Description
Mfr. Part No.
8-2-1 118-8706-00
118-8748-00
159-0339-00
159-0191-00
159-0338-00
159-0338-00
159-0339-00
159-0191-00
159-0338-00
159-0338-00
159-0339-00
159-0312-00
159-0312-00
-2 118-8709-00
129-1414-00
129-1412-00
211-0784-00
213-0717-00
118-8712-00
220-0085-00
118-8710-00
-10 211-0498-00
-11 211-0728-00
FUSE CIRCUIT BOARD
(PS280)
FUSE CIRCUIT BOARD
(PS283)
(ATTACHING PARTS)
.F102 FUSE.5 X 20 MM.5A.250V
(PS280)
.F102 FUSE.5 X 20 MM.2A.250V
(PS283)
.F103 FUSE.5 X 20 MM.0.315A.250V
.F104 FUSE.5 X 20 MM.0.315A.250V
.F105 FUSE.5 X 20 MM.5A.250V
(PS280)
.F105 FUSE.5X20MM.2A.250V
.F106 FUSE.5 X 20 MM.0.315A.250V
.F107 FUSE.5 X 20 MM.0.315A.250V
.F108 FUSE.5 X 20 MM.5A.250V
.F109 FUSE.5 X 20 MM.0.25A.250V
.F110 FUSE.5 X 20 MM.0.25A.250V
J113 WIRE C. JD-0104-0016
.J313 WIRE C. JD-0104-0016
J1041 WAFER B2B-XH-A
.J1042 WAFER B2B-XH-A
(END ATTACHING PARTS)
AC SELECTOR CIRCUIT BOARD
(ATTACHING PARTS)
.S102 SW SLIDE SDKGA4, F7422070M
(SDKGA4274A)
.8103 SW SLIDE SDKGA4, F7422070M
(SDKGA4274A)
(END ATTACHING PARTS)
SPACER.POST.32.5 MM L
SPACER.POST.30 MM L
SCREW.MACHINE.M3 X 8 MM
SCREW.SELF TAPPING.4-20 X 0.312
TRANSISTOR CIRCUIT BOARD.SLAVE
(ATTACHING PARTS)
.J1051 WAFER B4P-VH
.Q3071 TR 2N 3055, TOSH (2N 3055, ST)
.Q3072 TR 2N 3055. TOSH (2N 3055, ST)
(END ATTACHING PARTS)
NUT.PLAIN.HEX.M3 X5.5 MM
TRANSISTOR CIRCUIT BOARD.MASTER
(ATTACHING PARTS)
J3051 WAFER B8P-VH
.Q402 TR 2N 3055, TOSH (2N 3055. ST)
.Q1071 TR 2N 3055. TOSH (2N 3055, ST)
.01072 TR 2N 3055, TOSH (2N 3055, ST)
(END ATTACHING PARTS)
SCREW.MACHINE.M3 X 12 MM
SCREW.MACHINE.M3 X 0.5 X 16 MM
118-8706-00
118-8748-00
37FT-1124502
37FT-1124502
37FT-1124311
37FT-1124311
37FT-1124502
37FT-1124502
37FT-1124311
37FT-1124311
37FT-1124311
37FT-1124251
37FT-1124251
40WCJ1040016
40WCJ1040016
40WA-B2BXHA0
40WA-B2BXHA0
118-8709-00
3204-0220180
3204-0220180
129-1414-00
129-1412-00
211-0784-00
213-0717-00
118-8712-00
40WA-B4PVH00
2610-3055-00
2610-3055-00
220-0085-00
118-8710-00
40WA-B8PVH00
2610-3055-00
2610-3055-00
2610-3055-00
211-0498-00
211-0728-00
PS280 & PS283 Laboratory DC Power Supply Module-Level Service Manual
REV AUG 1991
8-9
