Tektronix TDS1002 User Manual

TDS2CMA Communications Module
148
TDS1000/2000-Series Digital Oscilloscope User Manual
GPIB Network Conventions
To achieve a high data t ransfer rate, the physical distance between
devices and the number of devices on the bus are limited. When you
create the GPIB network, follow these guide lines:

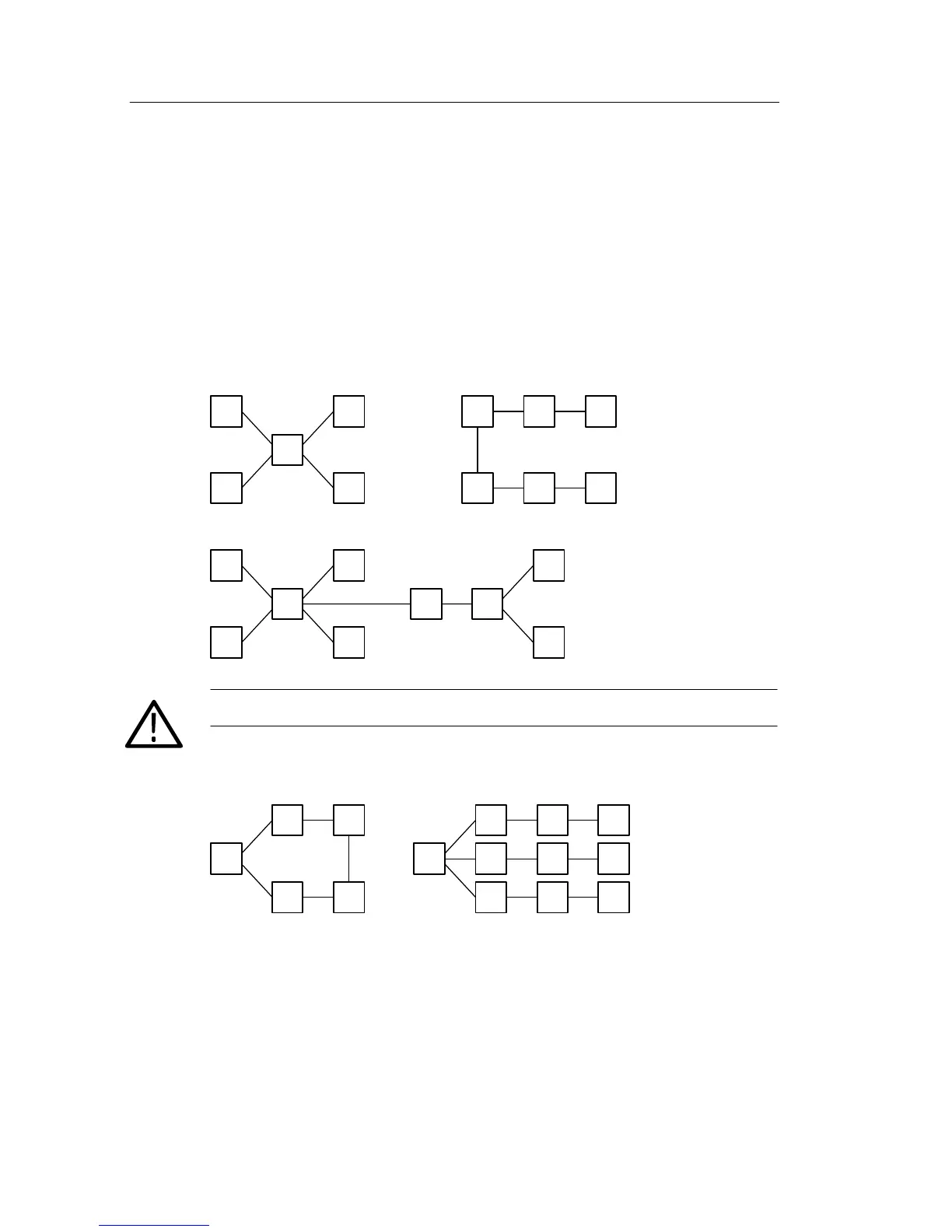

H Connect the GPIB devices in a star, linear, or combina tion
star/linear network.
CAUTION. Do not use loop or parallel networks.

Tektronix TDS1002 Specifications

General

Bandwidth	60 MHz
Channels	2
Sample Rate	1 GS/s
Record Length	2.5k points
Vertical Sensitivity	2 mV/div to 5 V/div
Vertical Resolution	8 bits
Display Resolution	320 x 240 pixels
Display	5.7 inch monochrome LCD
Trigger Modes	Video, Edge
Connectivity	USB 2.0
Weight	2.0 kg
Input Impedance	1 MΩ
Power Supply	100 to 240 VAC, 45 to 440 Hz
