Tektronix TDS3000 Series User Manual

Horizontal Controls
3–28
TDS3000 Series User Manual

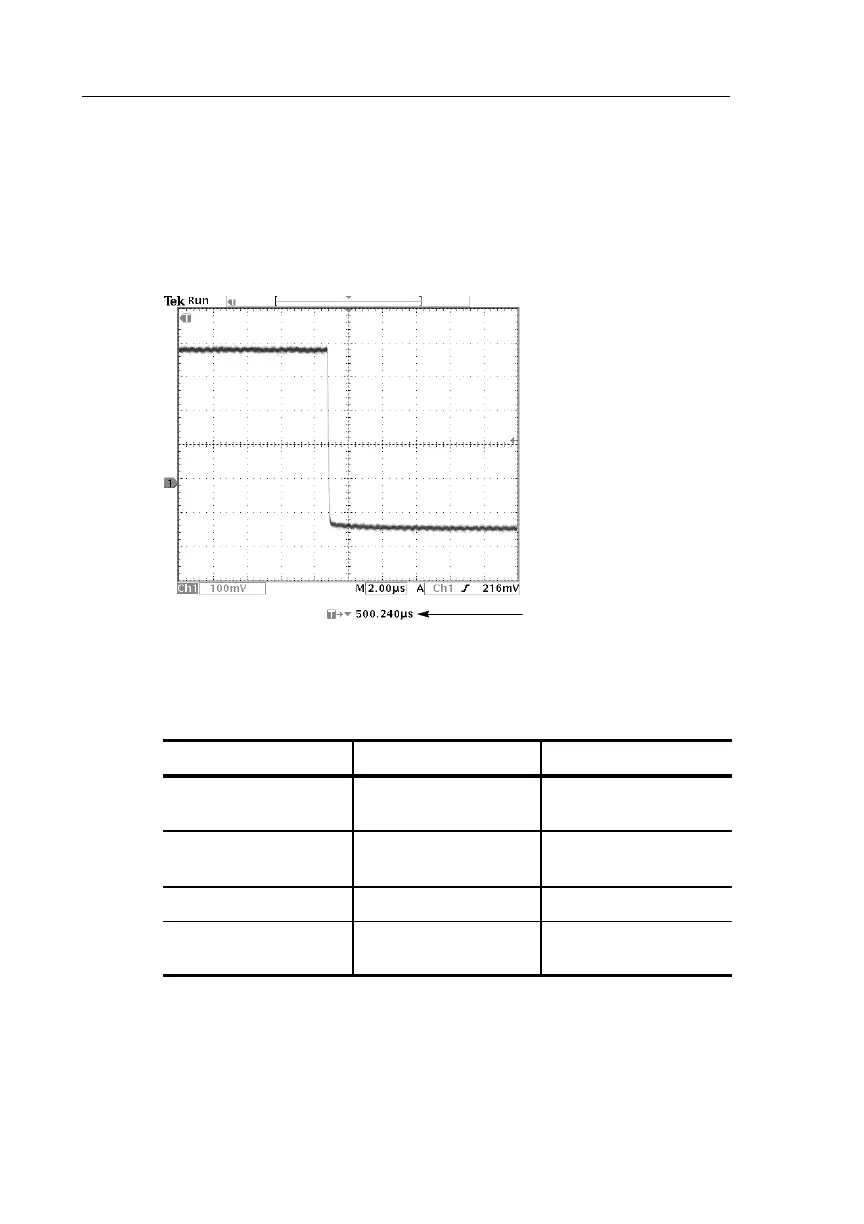

In the screen example below, the trigger markers show that the
trigger point is before the acquired waveform. The delay time,
shown in the readout, is the time from the trigger point to the
expansion point (center screen).
Delay time readout
The interaction between delay and other functions is summarized in
the table below.
Function Delay off Delay on
Trigger point Any point within the
acquired waveform
Can occur prior to the
acquired waveform
Expansion point Same as the trigger
point
Always center screen
Horizontal SCALE Sets time base Sets time base
Horizontal POSITION Sets trigger position in
the acquired waveform
Sets delay time
