Tektronix TDS3000 Series User Manual

Getting Started
1–30
TDS3000 Series User Manual

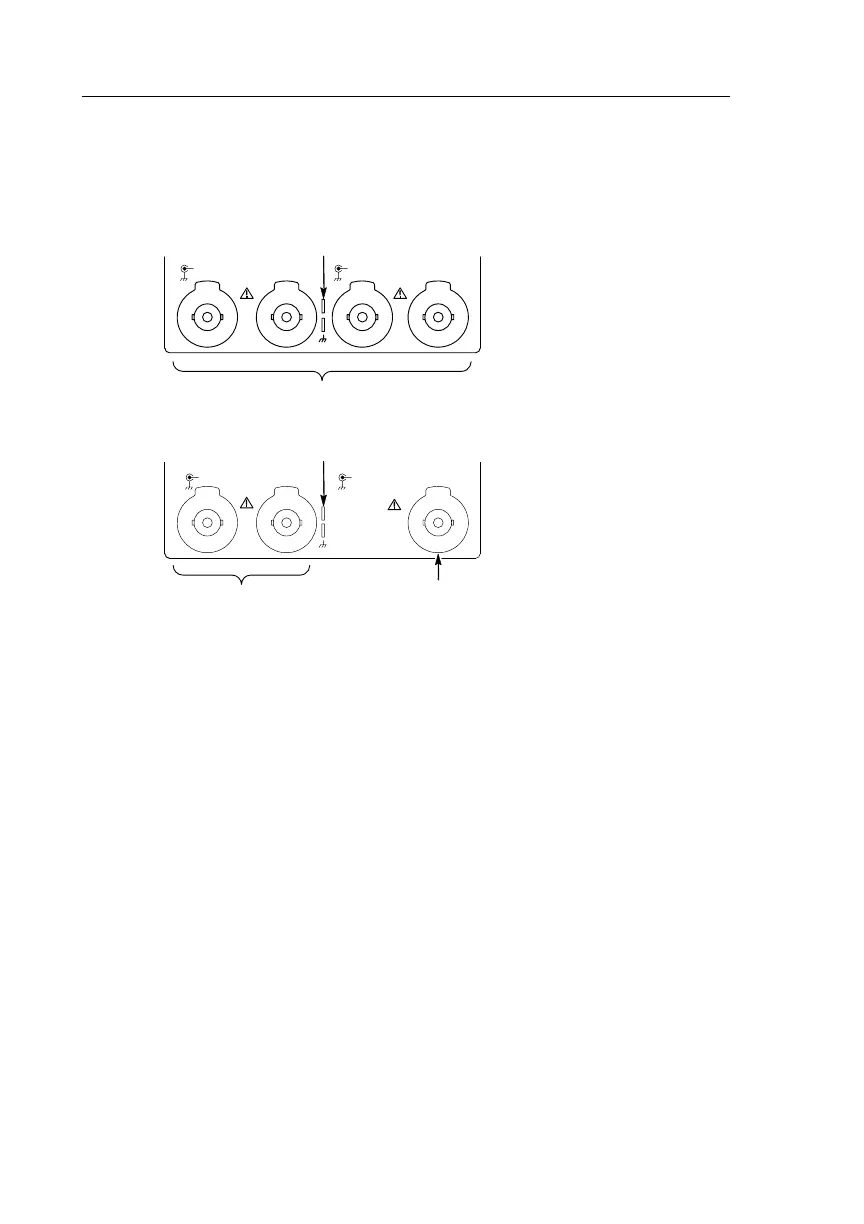

Front-Panel Connectors
[ 5V Ɩ
1
2
CH 4CH 3
CH 2CH 1
1MW, 13pF ≤150 VRMS CATl
PROBE COMP
3
PROBE COMP
[ 5V Ɩ
2
1
EXT TRIG
50W
≤5VRMS
50W
≤5VRMS
1MW, 13pF ≤150 VRMS CATl
1MW, 13pF ≤150 VRMS CATl
CH 2CH 1
50W
≤5VRMS
1MW, 17pF ≤150 VRMS CATl
1. PROBE COMP. Square wave signal source to compensate
probes.
2. CH 1, CH 2, (CH 3, CH 4). Channel inputs with TekProbe
interface.
3. EXT TRIG. External trigger input with TekProbe interface
(two-channel models only).
