Getting Started
1–26
TDS3000 Series User Manual

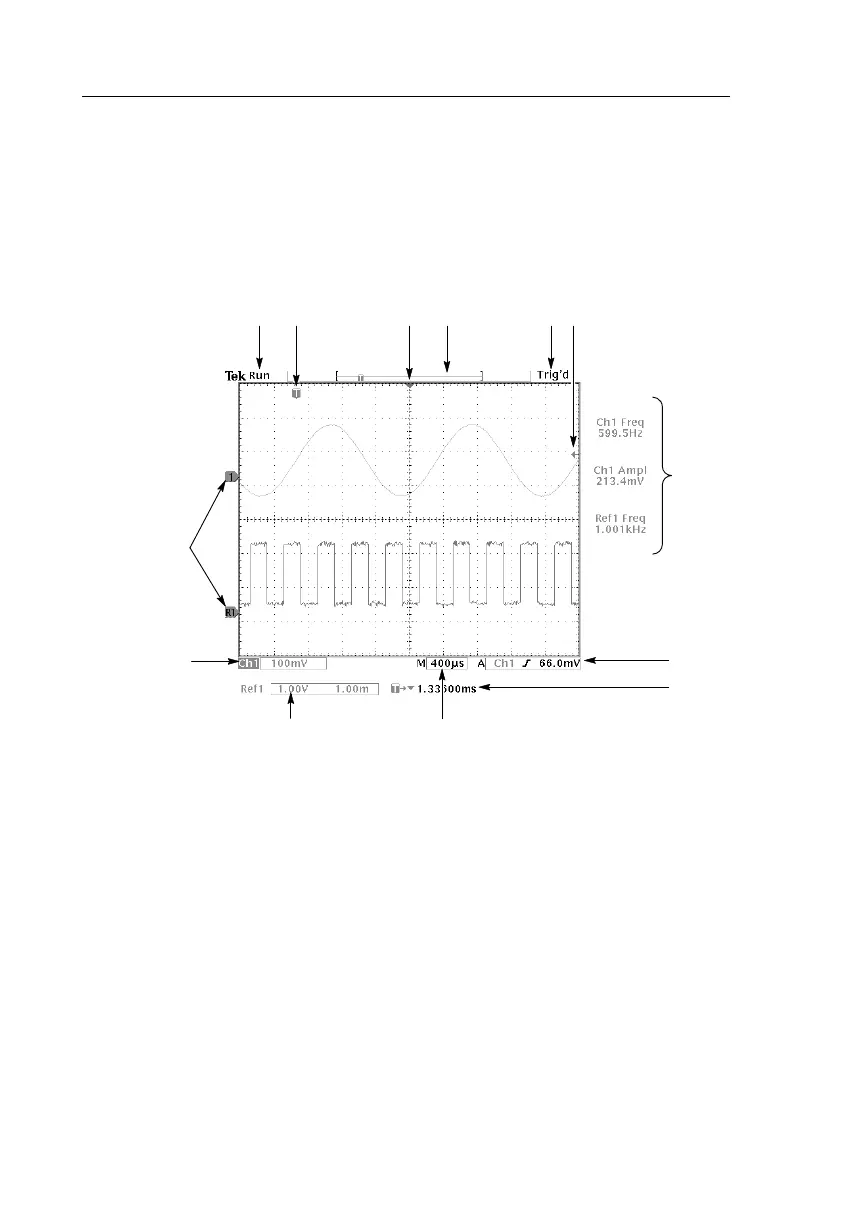

Identifying Items in the Display
The following items may appear in the display; not all items are
visible at any given time. Some readouts move outside the graticule
area when menus are turned off.
1
8
7
11
2 3 4 5
9
10
13
12
6
1. Waveform baseline icons show the zero-volt level of the
waveforms (ignoring the effect of offset). The icon colors
correspond to the waveform colors.
2. Acquisition readout shows when acquisition is running, stopped,
or when acquisition preview is in effect.
3. Trigger position icon shows the trigger location in the wave-
forms.
4. Expansion point icon shows the point that the horizontal scale
expands and compresses around.
