Getting Started
TDS3000 Series User Manual
1–25
15. Horizontal SCALE. Adjusts the horizontal scale factor.
16. Horizontal zoom. Splits the screen and magnifies the current
acquisition horizontally.
17. Waveform OFF. Removes selected waveform from the display.
18. Vertical SCALE. Adjusts selected waveform vertical scale factor.
19. CH1, CH2, (CH3, CH4,) MATH. Displays a waveform and
chooses the selected waveform. REF shows the reference
waveform menu.

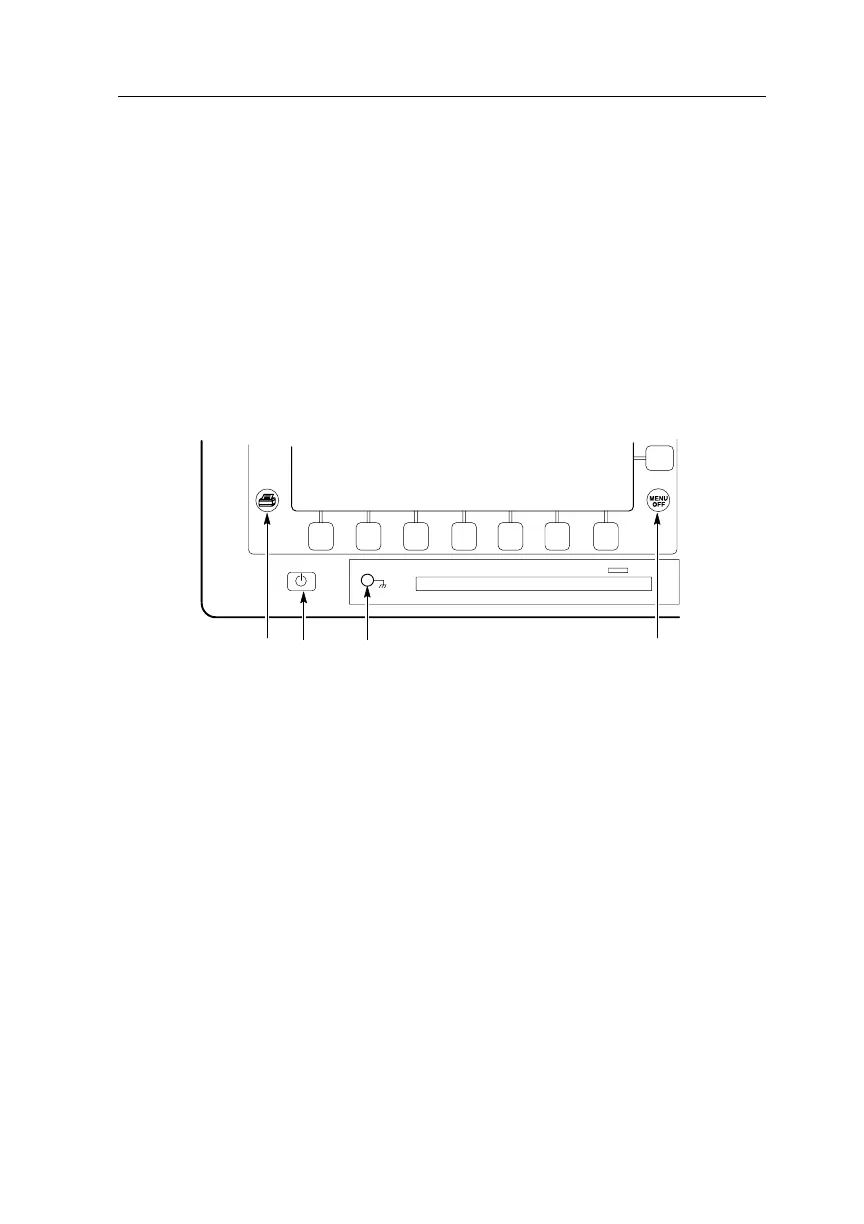

20 2321 22
20. Hard copy. Initiates a hard copy using the port selected in the
Utility menu.
21. Power switch. Turns power to on or standby. Power-up time
varies from about 15 seconds to 45 seconds, depending on the
oscilloscope internal calibration process.
22. Wrist-strap ground. Connect a wrist strap when working with
ESD-sensitive circuits. This connector is not a safety ground.
23. MENU OFF. Clears menu from the display.
