Application Examples
2–10
TDS3000 Series User Manual

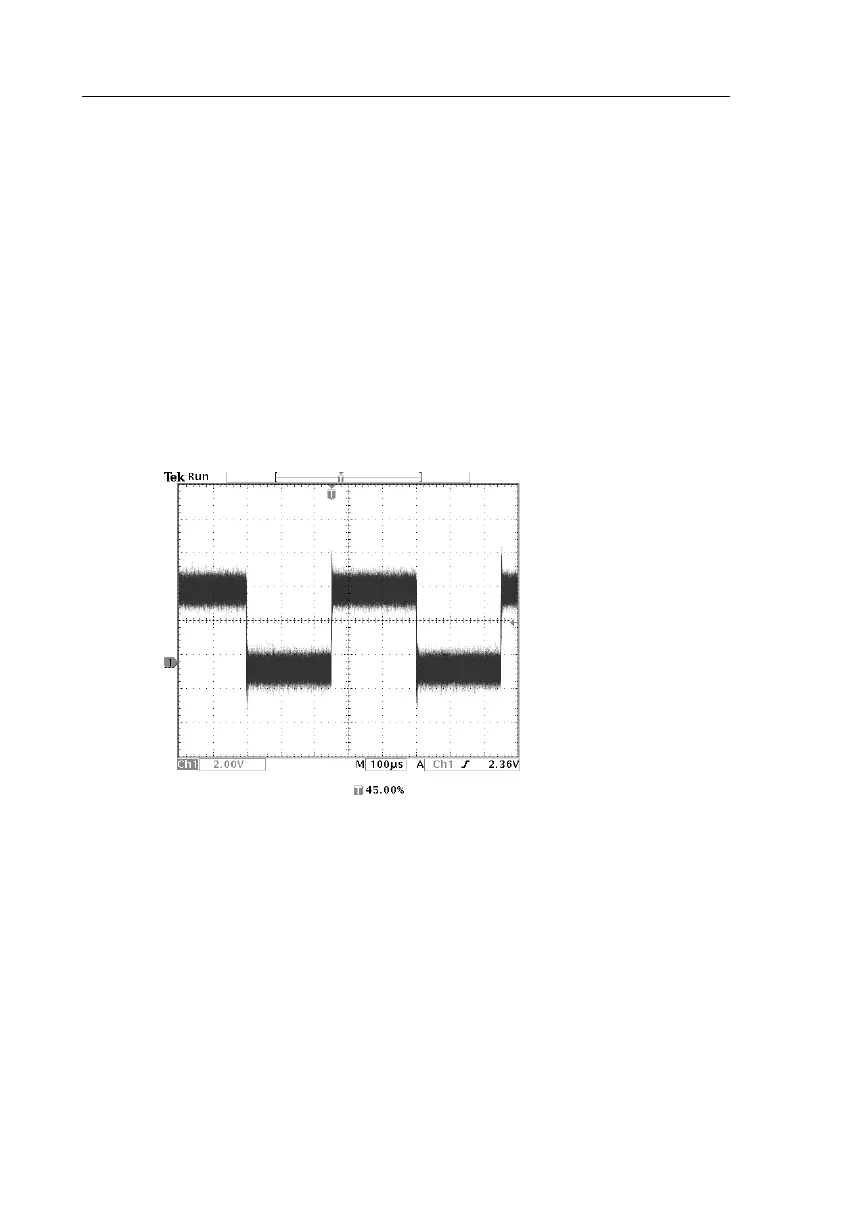

Looking at a Noisy Signal
The signal appears noisy and you suspect that noise is causing
problems in your circuit. To better analyze the noise, do these steps:
1. Push the acquire MENU button.
2. Select the Peak Detect acquisition mode.
3. Increase the WAVEFORM INTENSITY control to see the noise
more easily.
Peak detect emphasizes noise spikes and glitches in your signal as
narrow as 1 ns, even when the time base is set to a slow setting.
Refer to page 3–8 for more information about peak-detect and the
other acquisition modes.
To Next Page
