Tektronix TDS3000 Series User Manual

Measure
3–38
TDS3000 Series User Manual

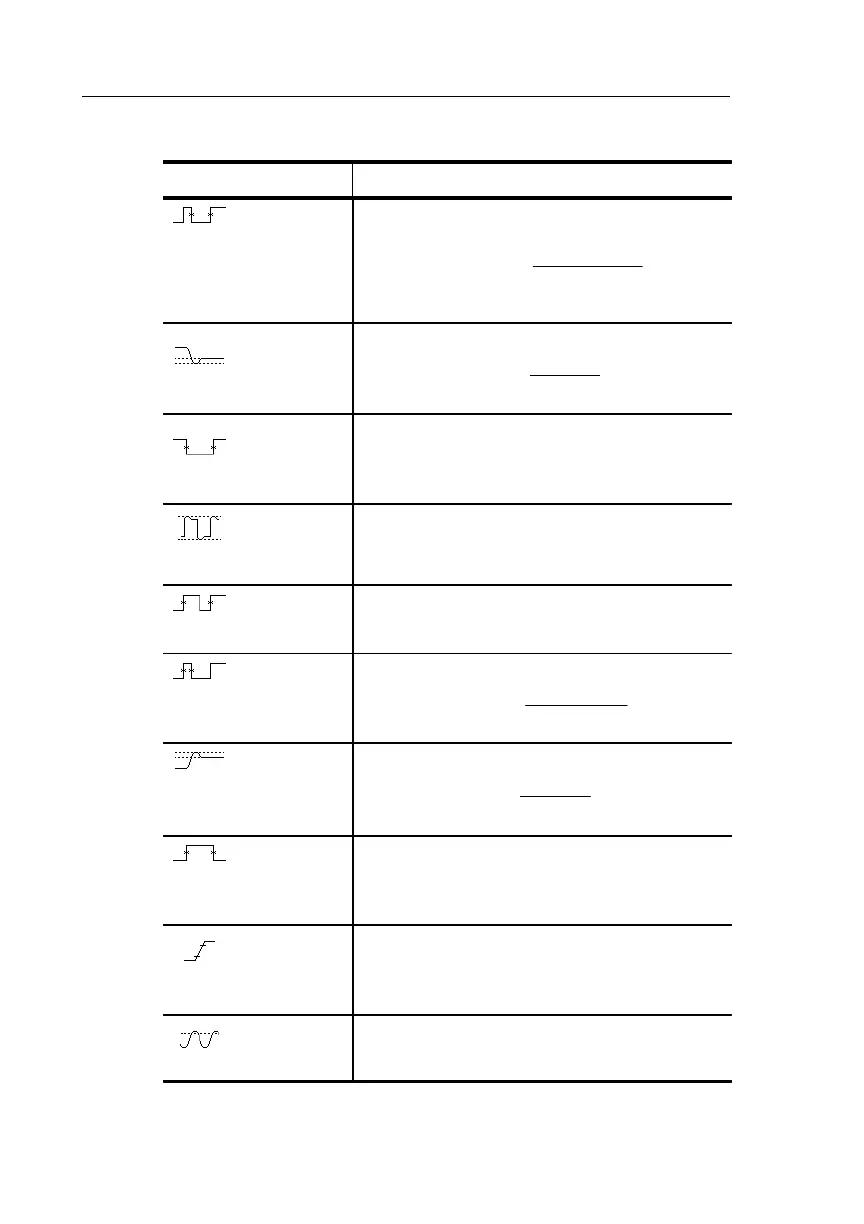

Measurement name Definition
Negative
Duty
Cycle
Measurement of the
first cycle in the wa-
veform.
Negative Duty Cycle +
Negative Width
Period
100%
Negative
Overshoot
Measured over the entire waveform.
Negative Overshoot +
Low–Min
Amplitude
100%
Negative
Width
Measurement of the first negative pulse in the
waveform. The time between the 50% amplitude
points.
Pk–Pk Measured over the entire waveform.
Peak-to-peak = Max – Min
Period Time it takes for the first complete signal cycle to
complete in the waveform. Measured in seconds.
Positive
Duty
Cycle
Measurement of the first cycle in the waveform.
Positive Duty Cycle +
Positive Width
Period
100%
Positive
Overshoot
Measured over the entire waveform.
Positive Overshoot +
Max–High
Amplitude
100%
Positive
Width
Measurement of the first positive pulse in the
waveform. The time between the 50% amplitude
points.
Rise Time Time that the leading edge of the first pulse in the
waveform takes to rise from 10% to 90% of its
amplitude.
RMS The true Root Mean Square voltage over the entire
waveform.
