Application Examples
2–14
TDS3000 Series User Manual

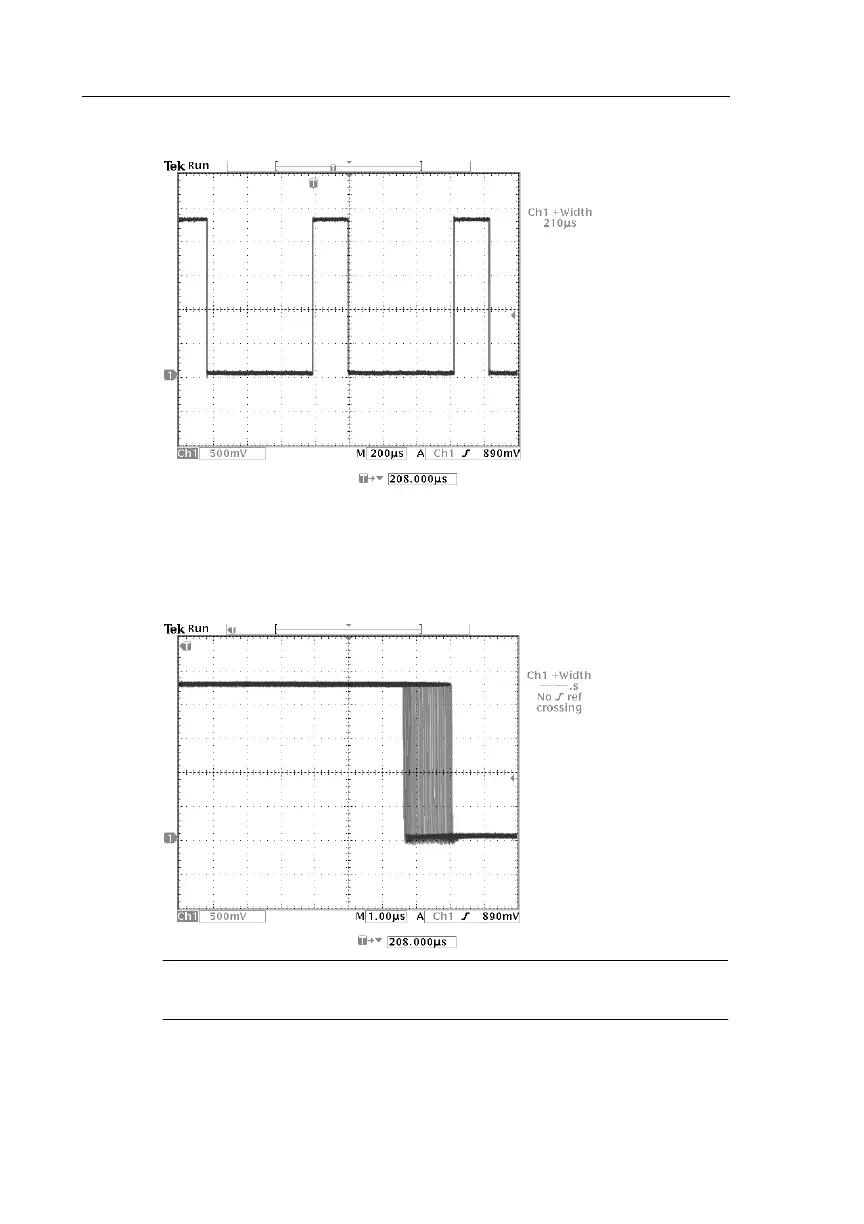

3. Adjust the horizontal SCALE to a faster time base setting and
increase the WAVEFORM INTENSITY to see the jitter in the
pulse width.
NOTE. You can toggle the delay function on and off to view signal
details at two different areas of interest.
