Application Examples
TDS3000 Series User Manual
2–25
The oscilloscope can append an automatic sequence number to the
target file name. This feature is convenient because you want to
capture a screen image of the same control signal every five minutes.
To set up the target file name and automatic sequence, do these
steps:
1. Push the File Utilities screen button.
2. Use the general purpose knob to highlight the file
TEK?????.BMP.
3. Select the Rename screen button.

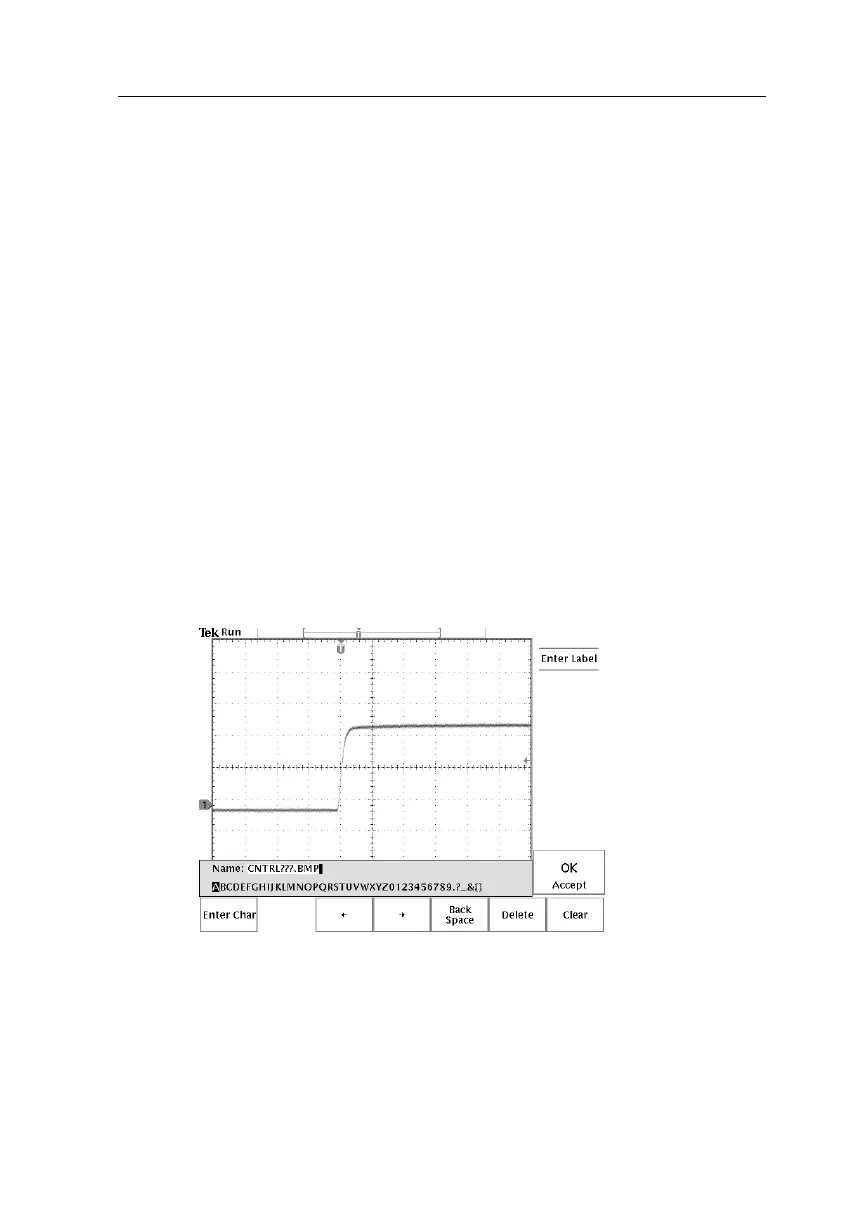

4. Use the screen buttons to clear the existing file name and enter
the new file name CNTRL???.BMP. The question marks are
placeholders for an automatic number sequence from 000 to 999.
5. Push the OK Accept screen button to setup the target base file
name.
6. Push MENU OFF to remove the file list from the display.
