Tektronix TDS5000B Series Specification And Performance Verification Technical Reference

Performance Tests
TDS5000B Series Specifications and Performance Verification
2-27

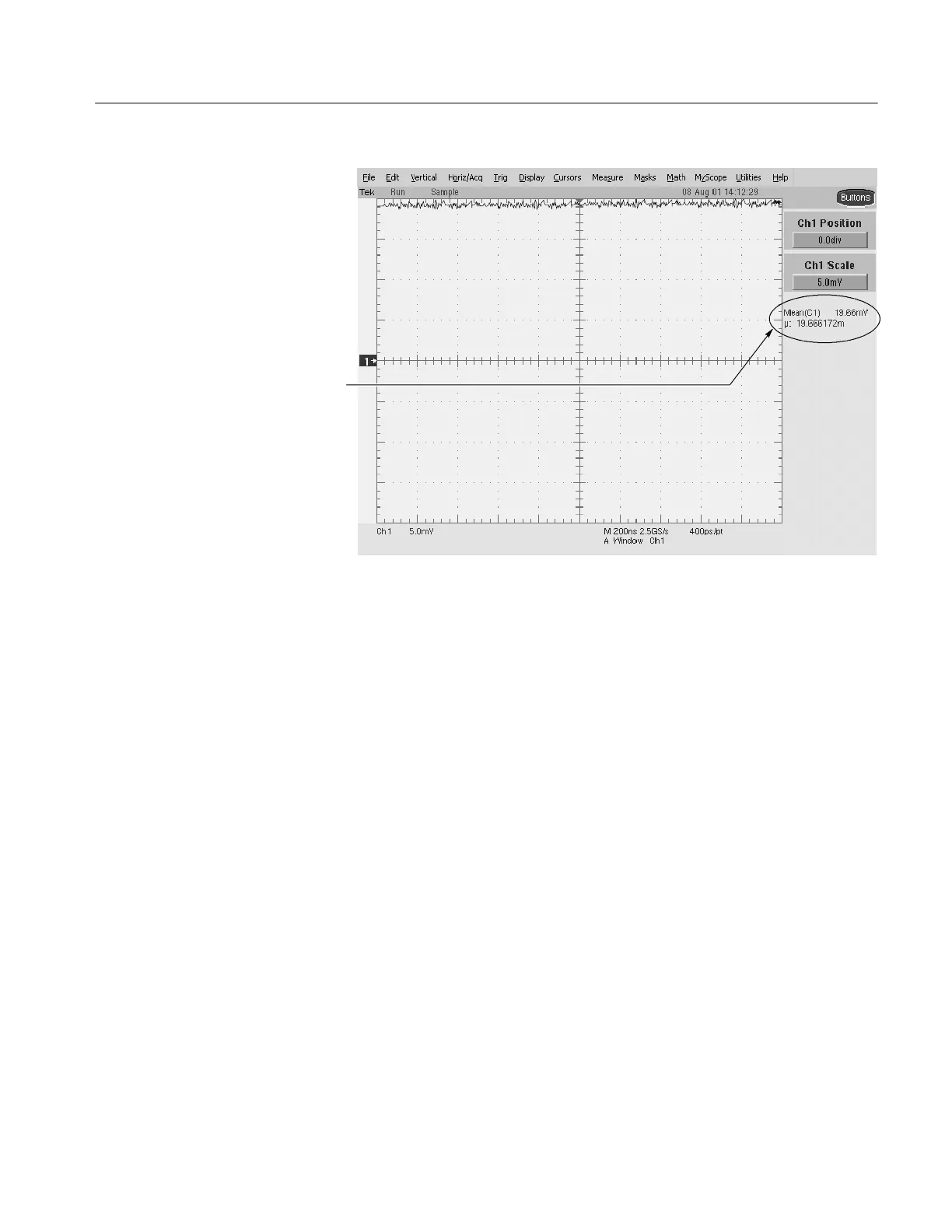

Turn on the
measurement called
mean and read the
results here.
Figure 2- 9: Measurement of DC accuracy at maximum offset and position
f. Check against limits:
H CHECK that the Mean readout on the screen is within the limits
listed for the current vertical scale and position/offset/generator
settings. Enter the value in the test record.
H Repeat substep d, reversing the polarity of the position, offset, and
generator settings as is listed in the Table 2--2 on page 2--26.
H CHECK that the Mean measurement readout on the screen is within
the limits listed for the current vertical scale setting and position/off-
set/generator settings. Enter the value in the test record.
H Repeat substeps c through f until all vertical scale settings, listed in
Table 2--2, are checked for the channel under test.
g. Test all channels: Repeat substeps a through f for all channels.
3. Disconnect the hookup:
a. Set the generator output to 0V.
b. Disconnect the cable from the generator output at the input connector of
the channel last tested.
