Tektronix THDP0100 User Manual

Preface
Preface
This document provides operating information and specifi cations for the Tektronix THDP0100/0200 & TMDP0200 high voltage
differential probes. The probes share similar functions, properties, and operating procedures, and are discussed first, followed
by the specifications, which differ by probe model. Service procedures include performance verification and adjustments.
WARNING. Only use the accessories that are designed for your probe and that are rated at or above the voltages you
are measuring.
Name Bandwidth Peak voltage range Oscilloscope interface
THDP0100 100 MHz
600 V /6000 V
TekVPI
THDP0200 200 MHz
150 V /1500 V
TekVPI
TMDP0200 200 MHz
75 V/750 V
TekVPI

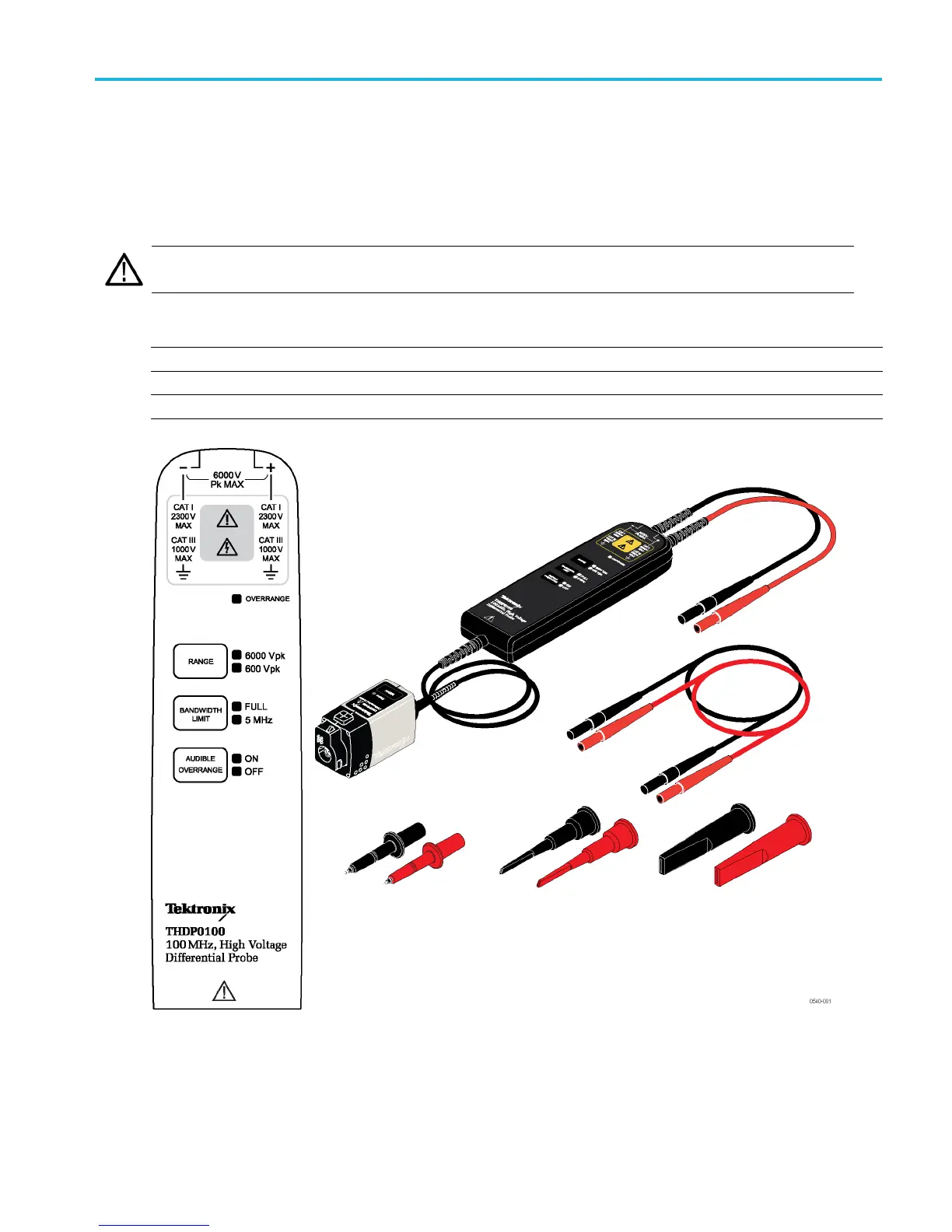

Figure i: THDP0100 probe with accessories
THDP0100/0200 & TMDP 0200 High Voltage Differential Probes Instruction Manual ix
